DC0019/02-TI900-0.12-2A

Active

t-Global Technology

THERM PAD 28.58MMX28.58MM W/ADH

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 28.58MMX28.58MM W/ADH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 1.64

General part information

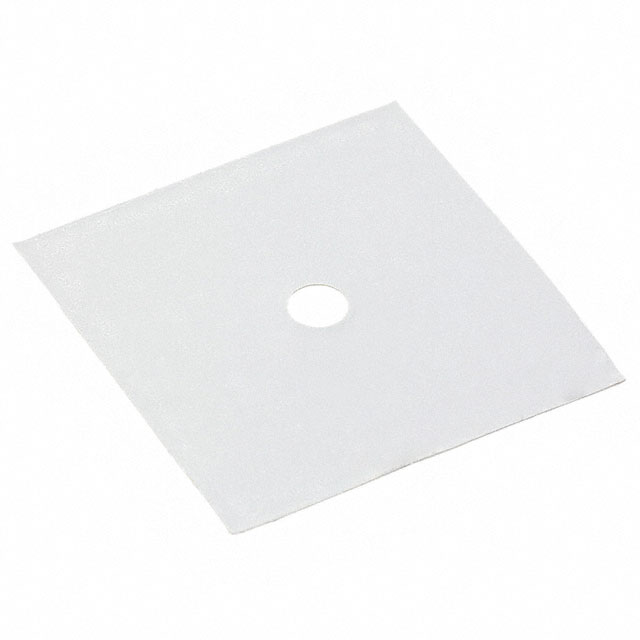

Thermal Pad White 28.58mm x 28.58mm Square Adhesive - Both Sides

Technical documentation and resources

Part	Outline [x]	Outline [y]	Color	Shelf Life	Shape	Material	Shelf Life Start	Type	Usage	Thickness	Thickness	Thermal Conductivity	Thickness [custom]	Thickness [custom]	Adhesive	Backing, Carrier	Thickness [x]	Thickness [x]
t-Global Technology DC0019/02-TG-A482K-0.1-0	28.58 mm	28.58 mm	Red	24 Months	Square	Silicone	Date of Purchase	Die-Cut Pad, Sheet	Rectifier	0.1 mm	0.0039 in	2.3 W/m-K
t-Global Technology DC0019/02-TG-A373F-0.25-2A	28.58 mm	28.58 mm	Yellow	12 Months	Square			Die-Cut Pad, Sheet	Rectifier			1.4 W/m-K	0.254 mm	0.01 in	Adhesive - Both Sides
t-Global Technology DC0019/02-TI900-0.12-2A	28.58 mm	28.58 mm	White	24 Months	Square	Silicone		Die-Cut Pad, Sheet	Rectifier			1.8 W/m-K			Adhesive - Both Sides	Viscose	0.005 in	0.127 mm
t-Global Technology DC0019/02-TG-A486G-0.3-2A	28.58 mm	28.58 mm	Gray	12 Months	Square		Date of Purchase	Die-Cut Pad, Sheet	Rectifier			6 W/m-K	0.305 mm	0.012 "	Adhesive - Both Sides
