UCJ220-026

Active

Cinch Connectivity Solutions Trompeter

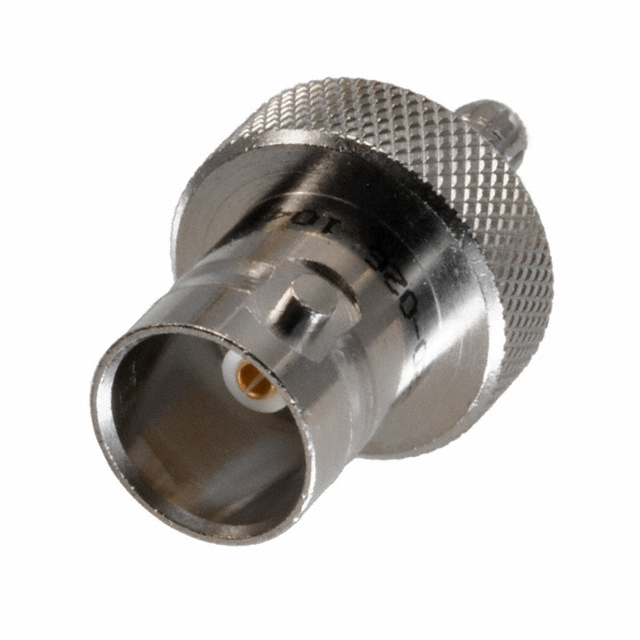

CONN BNC JACK STR 75 OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	UCJ220-026

Body Finish	Nickel
Body Material	Brass
Cable Group	Lucent 735A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

CONN BNC JACK STR 75 OHM CRIMP

Part	Center Contact Material	Impedance	Frequency - Max [Max]	Connector Style	Contact Termination	Center Contact Plating	Mounting Type	Number of Ports	Shield Termination	Dielectric Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Body Finish	Fastening Type	Voltage Rating	Connector Type	Cable Group
Cinch Connectivity Solutions Trompeter UCJ220-026	Beryllium Copper	75 Ohms	4 GHz	BNC	Crimp	Gold	Free Hanging (In-Line)	1	Crimp	Polytetrafluoroethylene (PTFE)	Silver	-65 ░C	165 °C	Brass	Nickel	Bayonet Lock	500 V	Female Socket, Jack	Lucent 735A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 26.98

General part information

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
