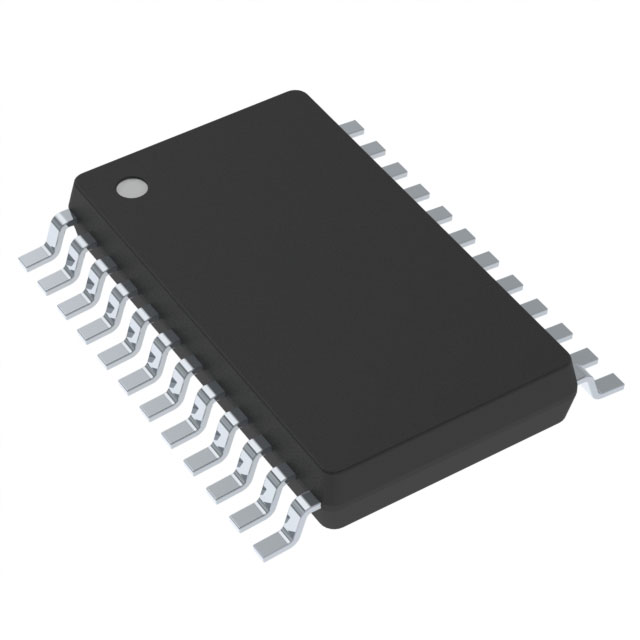

IS31FL3726A-ZLS4-TR

Active

Lumissil Microsystems

IC LED DRV LIN NO 24ETSSOP

Search across all available documentation for this part.

Active

Lumissil Microsystems

IC LED DRV LIN NO 24ETSSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS31FL3726A-ZLS4-TR	IS31FL3726 Series

Applications	Signage	Backlight, Signage
Current - Output / Channel	-	60 mA
Current - Output / Channel [custom]	25.2 mA	25.2 mA
Dimming	False	False
Dimming	-	PWM
Features	-	Dimmable
Frequency	-	20 MHz
Internal Switch(s)	False	True, False
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	16	16
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outputs and Type	-	16
Outputs and Type	-	Non-Isolated
Package / Case	0.173 in	0.173 in
Package / Case	Exposed Pad, 24-TSSOP	Exposed Pad, 24-TSSOP, 24-VFQFN Exposed Pad, 24-SSOP
Package / Case [y]	4.4 mm	4.4 mm
Supplied Contents	-	Board(s)
Supplier Device Package	24-eTSSOP	24-TSSOP, 24-eTSSOP, 24-QFN (4x4), 24-SSOP
Topology	Shift Register	Shift Register
Type	Linear	Linear
Utilized IC / Part	-	IS31FL3726A
Voltage - Input	-	5.5 V
Voltage - Input	-	3 V
Voltage - Output	5 V	4 - 5 V
Voltage - Supply (Max)	5.5 V	5.5 V
Voltage - Supply (Min) [Min]	3 V	3 - 3.3 V

IC LED DRVR LIN PWM 60MA 24TSSOP

Part	Current - Output / Channel	Voltage - Supply (Max)	Voltage - Output	Type	Applications	Voltage - Supply (Min) [Min]	Topology	Package / Case	Package / Case	Package / Case [y]	Supplier Device Package	Mounting Type	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Number of Outputs	Current - Output / Channel [custom]	Features	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part
Lumissil Microsystems IS31FL3726-ZLS2	60 mA	5.5 V	4 V	Linear	Backlight	3.3 V	Shift Register	0.173 in	24-TSSOP, Exposed Pad	4.4 mm	24-TSSOP	Surface Mount	20 MHz	85 °C	-40 °C	PWM	16
Lumissil Microsystems IS31FL3726A-ZLS4-TR		5.5 V	5 V	Linear	Signage	3 V	Shift Register	0.173 in	24-TSSOP, Exposed Pad	4.4 mm	24-eTSSOP	Surface Mount		125 °C	-40 °C		16	25.2 mA
Lumissil Microsystems IS31FL3726A-QFLS4-EB	60 mA																		Dimmable	16	Non-Isolated	Board(s)	5.5 V	3 V	IS31FL3726A
Lumissil Microsystems IS31FL3726-QFLS2-TR	60 mA	5.5 V	4 V	Linear	Backlight	3.3 V	Shift Register		24-VFQFN Exposed Pad		24-QFN (4x4)	Surface Mount	20 MHz	85 °C	-40 °C	PWM	16
Lumissil Microsystems IS31FL3726-ZLS2-TR	60 mA	5.5 V	4 V	Linear	Backlight	3.3 V	Shift Register	0.173 in	24-TSSOP, Exposed Pad	4.4 mm	24-eTSSOP	Surface Mount	20 MHz	85 °C	-40 °C	PWM	16
Lumissil Microsystems IS31FL3726A-SALS4-TR		5.5 V	5 V	Linear	Signage	3 V	Shift Register		24-SSOP		24-SSOP	Surface Mount		125 °C	-40 °C		16	25.2 mA
