IS31FL3726A-QFLS4-EB

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3726A

Search across all available documentation for this part.

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3726A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 52.50

General part information

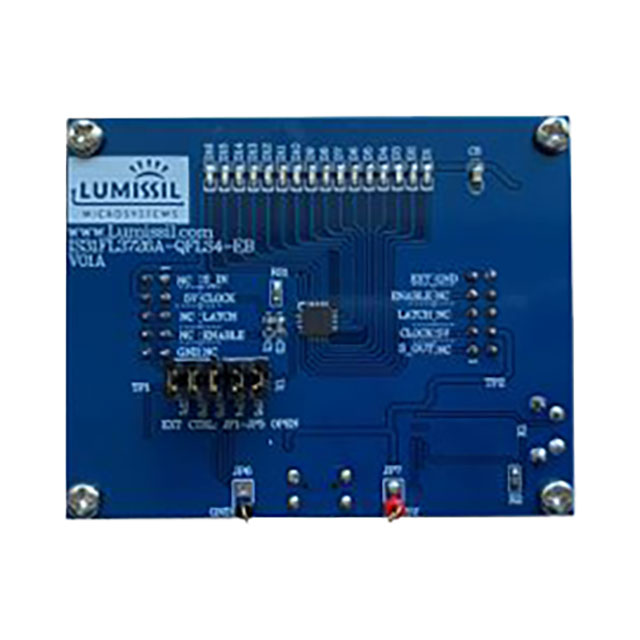

IS31FL3726A 16, Non-Isolated Outputs LED Driver Evaluation Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	IS31FL3726A-QFLS4-EB	IS31FL3726 Series

Applications	-	Backlight, Signage
Current - Output / Channel	60 mA	60 mA
Current - Output / Channel	-	25.2 mA
Dimming	-	PWM
Dimming	-	False
Features	Dimmable	Dimmable
Frequency	-	20 MHz
Internal Switch(s)	-	True, False
Mounting Type	-	Surface Mount
Number of Outputs	-	16
Operating Temperature	-	85 - 125 °C
Operating Temperature	-	-40 °C
Outputs and Type	16	16
Outputs and Type	Non-Isolated	Non-Isolated
Package / Case	-	0.173 in
Package / Case	-	Exposed Pad, 24-TSSOP, 24-VFQFN Exposed Pad, 24-SSOP
Package / Case	-	4.4 mm
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	24-TSSOP, 24-eTSSOP, 24-QFN (4x4), 24-SSOP
Topology	-	Shift Register
Type	-	Linear
Utilized IC / Part	IS31FL3726A	IS31FL3726A
Voltage - Input [Max]	5.5 V	5.5 V
Voltage - Input [Min]	3 V	3 V
Voltage - Output	-	4 - 5 V
Voltage - Supply (Max)	-	5.5 V
Voltage - Supply (Min)	-	3 - 3.3 V

IC LED DRVR LIN PWM 60MA 24TSSOP

Part	Current - Output / Channel	Voltage - Supply (Max)	Voltage - Output	Type	Applications	Voltage - Supply (Min) [Min]	Topology	Package / Case	Package / Case	Package / Case [y]	Supplier Device Package	Mounting Type	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Number of Outputs	Current - Output / Channel [custom]	Features	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part
Lumissil Microsystems IS31FL3726-ZLS2	60 mA	5.5 V	4 V	Linear	Backlight	3.3 V	Shift Register	0.173 in	24-TSSOP, Exposed Pad	4.4 mm	24-TSSOP	Surface Mount	20 MHz	85 °C	-40 °C	PWM	16
Lumissil Microsystems IS31FL3726A-ZLS4-TR		5.5 V	5 V	Linear	Signage	3 V	Shift Register	0.173 in	24-TSSOP, Exposed Pad	4.4 mm	24-eTSSOP	Surface Mount		125 °C	-40 °C		16	25.2 mA
Lumissil Microsystems IS31FL3726A-QFLS4-EB	60 mA																		Dimmable	16	Non-Isolated	Board(s)	5.5 V	3 V	IS31FL3726A
Lumissil Microsystems IS31FL3726-QFLS2-TR	60 mA	5.5 V	4 V	Linear	Backlight	3.3 V	Shift Register		24-VFQFN Exposed Pad		24-QFN (4x4)	Surface Mount	20 MHz	85 °C	-40 °C	PWM	16
Lumissil Microsystems IS31FL3726-ZLS2-TR	60 mA	5.5 V	4 V	Linear	Backlight	3.3 V	Shift Register	0.173 in	24-TSSOP, Exposed Pad	4.4 mm	24-eTSSOP	Surface Mount	20 MHz	85 °C	-40 °C	PWM	16
Lumissil Microsystems IS31FL3726A-SALS4-TR		5.5 V	5 V	Linear	Signage	3 V	Shift Register		24-SSOP		24-SSOP	Surface Mount		125 °C	-40 °C		16	25.2 mA
