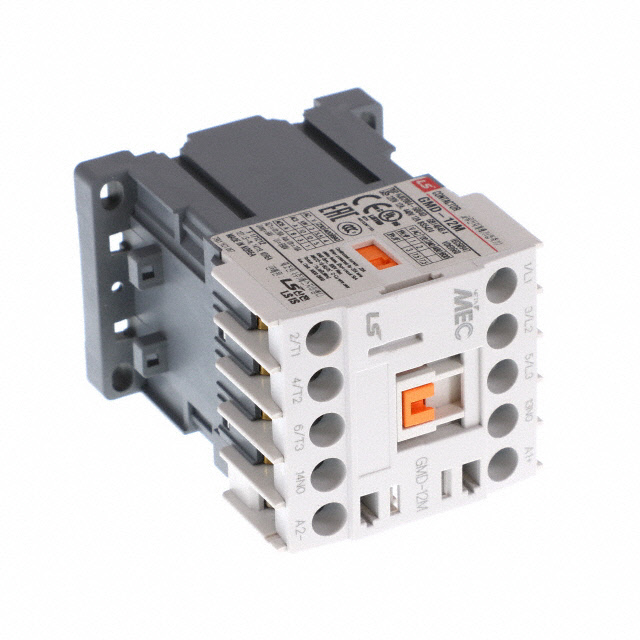

GMD-12M-10-DC24V

Active

Altech Corporation

MINI CONTACTOR12A380440V 3P1 NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GMD-12M-10-DC24V

Active

Altech Corporation

MINI CONTACTOR12A380440V 3P1 NO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GMD-12M-10-DC24V

Coil Power	3 W
Coil Voltage	24 VDC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	20 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	40 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-5 °C
Release Time	35 ms
Switching Voltage	600 VAC
Termination Style	Screw Terminal

GMD-12 Series

Part	Coil Power	Contact Form	Termination Style	Coil Current	Mounting Type	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Operate Time	Contact Rating (Current)	Coil Resistance	Features	Must Release Voltage	Must Operate Voltage	Switching Voltage
Altech Corporation GMD-12M-01-DC12V	3 W	3PST-NO (3 Form A)	Screw Terminal	250 mA	Chassis Mount DIN Rail	12 VDC	-5 °C	40 °C	35 ms	40 ms	20 A	48 Ohms	Auxiliary Contacts	1.2 VDC	9.6 VDC	600 VAC
TE Connectivity Raychem Cable Protection GMD-12M-01-DC24V	3 W	3PST-NO (3 Form A)	Screw Terminal	125 mA	Chassis Mount DIN Rail	24 VDC	-5 °C	40 °C	35 ms	40 ms	20 A	192 Ohms	Auxiliary Contacts	2.4 VDC	19.2 VDC	600 VAC
Altech Corporation GMD-12M-01-DC24V	3 W	3PST-NO (3 Form A)	Screw Terminal	125 mA	Chassis Mount DIN Rail	24 VDC	-5 °C	40 °C	35 ms	40 ms	20 A	192 Ohms	Auxiliary Contacts	2.4 VDC	19.2 VDC	600 VAC
Altech Corporation GMD-12M-10-DC125V	3 W	3PST-NO (3 Form A)	Screw Terminal	24 mA	Chassis Mount DIN Rail	125 VDC	-5 °C	40 °C	35 ms	40 ms	20 A	5.2 kOhms	Auxiliary Contacts	12.5 VDC	100 VDC	600 VAC
TE Connectivity Raychem Cable Protection GMD-12M-10-DC12V	3 W	3PST-NO (3 Form A)	Screw Terminal	250 mA	Chassis Mount DIN Rail	12 VDC	-5 °C	40 °C	35 ms	40 ms	20 A	48 Ohms	Auxiliary Contacts	1.2 VDC	9.6 VDC	600 VAC
Altech Corporation GMD-12M-10-DC12V	3 W	3PST-NO (3 Form A)	Screw Terminal	250 mA	Chassis Mount DIN Rail	12 VDC	-5 °C	40 °C	35 ms	40 ms	20 A	48 Ohms	Auxiliary Contacts	1.2 VDC	9.6 VDC	600 VAC
Altech Corporation GMD-12M-10-DC24V	3 W	3PST-NO (3 Form A)	Screw Terminal		Chassis Mount DIN Rail	24 VDC	-5 °C	40 °C	35 ms	40 ms	20 A		Auxiliary Contacts	2.4 VDC	19.2 VDC	600 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.34
		10	$ 34.36
		25	$ 32.56
		50	$ 31.26
		100	$ 30.02
		250	$ 28.44

Description

General part information

GMD-12 Series

MINI CONTACTOR12A380440V 3P1 NO
