FT511BB

Obsolete

Fremont Micro Devices Ltd

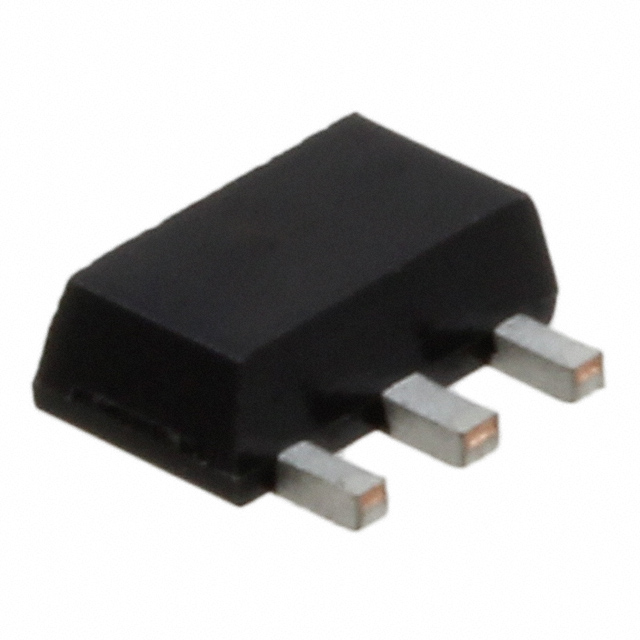

IC REG LIN 1.5V 150MA SOT89-3LA

Search across all available documentation for this part.

Obsolete

Fremont Micro Devices Ltd

IC REG LIN 1.5V 150MA SOT89-3LA

Technical Specifications

Parameters and characteristics commom to parts in this series

IC REG LIN 1.5V 150MA SOT89-3LA

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Number of Regulators	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Protection Features	Package / Case	Mounting Type	Voltage Dropout (Max) [Max]	Output Configuration	Supplier Device Package	Current - Output
Fremont Micro Devices Ltd FT511BB	5.5 V	85 °C	-40 °C	1.81 mOhm	1	1.6 µA	1.5 V	Over Current	TO-243AA	Surface Mount	0.45 V	Positive	SOT-89-3LA	150 mA
Fremont Micro Devices Ltd FT511DB	5.5 V	85 °C	-40 °C	1.81 mOhm	1	1.6 µA	2.5 V	Over Current	TO-243AA	Surface Mount	0.22 V	Positive	SOT-89-3LA	150 mA
Fremont Micro Devices Ltd FT511AB	5.5 V	85 °C	-40 °C	1.81 mOhm	1	1.6 µA	1.2 V	Over Current	TO-243AA	Surface Mount	0.7 V	Positive	SOT-89-3LA	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-89-3LA

Technical documentation and resources

No documents available
