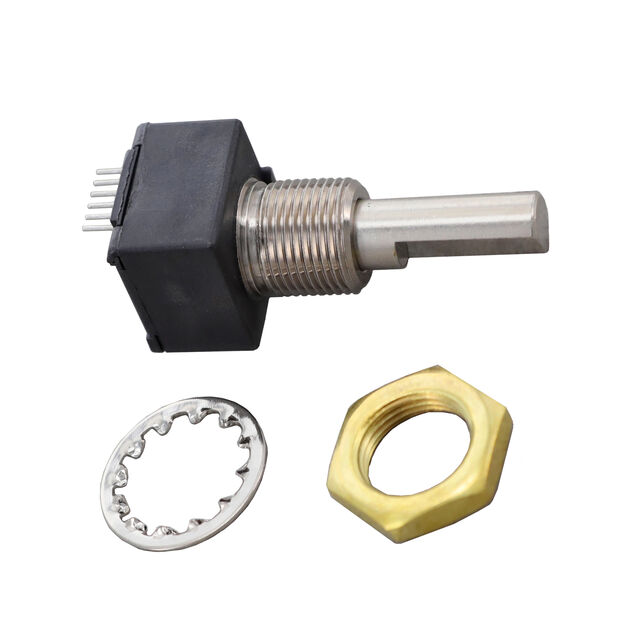

EM14R0A-M25-L064S
ActiveBourns Inc.
ROTARY OPTICAL ENCODER - 14MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM14R0A-M25-L064S
ActiveBourns Inc.
ROTARY OPTICAL ENCODER - 14MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM14R0A-M25-L064S |
|---|---|
| Actuator Type | Flatted End |
| Actuator Type [diameter] | 6 mm |
| Built in Switch | True |
| Detent | False |
| Encoder Type | Optical |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 64 |
| Rotational Life (Cycles Min) | 1M |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 31.31 | |
| 5 | $ 26.89 | |||
| 10 | $ 25.17 | |||
| 25 | $ 23.06 | |||
| 50 | $ 21.58 | |||
| 100 | $ 20.18 | |||
| 250 | $ 18.47 | |||
| 500 | $ 18.20 | |||
Description
General part information
EM14R0A Series
Rotary Encoder Optical 64 Quadrature (Incremental) Vertical
