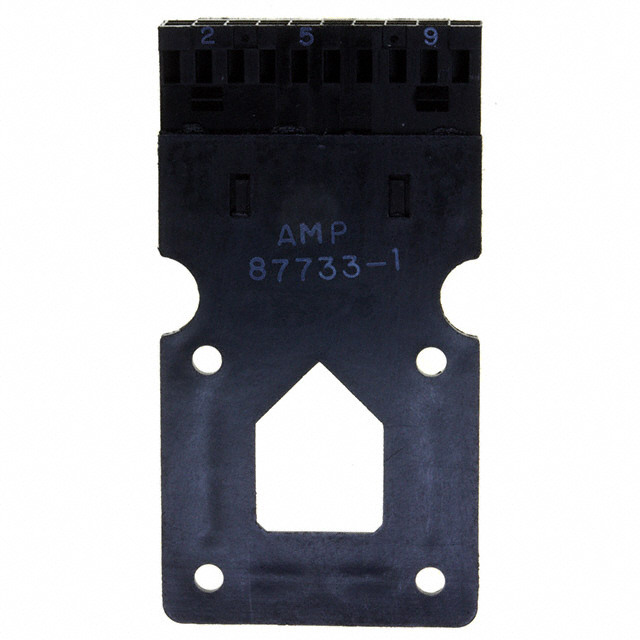

87733-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87733-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 20POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87733-1 | 87733 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Male or Female |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Strain Relief | Strain Relief |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 20 | 20 - 60 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
87733 Series
CONN RCPT HSG 20POS 2.54MM
| Part | Contact Type | Contact Termination | Row Spacing [x] | Row Spacing | Color | Features | Fastening Type | Number of Rows | Insulation Material | Note | Pitch [x] | Pitch [x] | Number of Positions | Connector Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87733-1 | Male or Female | Crimp | 0.1 in | 2.54 mm | Black | Strain Relief | Locking Ramp | 2 | Thermoplastic | Contacts Not Included | 2.54 mm | 0.1 in | 20 | Receptacle | Free Hanging (In-Line) | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 87733-8 | Male or Female | Crimp | 0.1 in | 2.54 mm | Black | Strain Relief | Locking Ramp | 2 | Thermoplastic | Contacts Not Included | 2.54 mm | 0.1 in | 34 | Receptacle | Free Hanging (In-Line) | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 1-87733-1 | Male or Female | Crimp | 0.1 in | 2.54 mm | Black | Strain Relief | Locking Ramp | 2 | Contacts Not Included | 2.54 mm | 0.1 in | 40 | Receptacle | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors 1-87733-4 | Male or Female | Crimp | 0.1 in | 2.54 mm | Black | Strain Relief | Locking Ramp | 2 | Thermoplastic | Contacts Not Included | 2.54 mm | 0.1 in | 50 | Receptacle | Free Hanging (In-Line) | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 87733-3 | Male or Female | Crimp | 0.1 in | 2.54 mm | Black | Strain Relief | Locking Ramp | 2 | Thermoplastic | Contacts Not Included | 2.54 mm | 0.1 in | 24 | Receptacle | Free Hanging (In-Line) | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 87733-4 | Male or Female | Crimp | 0.1 in | 2.54 mm | Black | Strain Relief | Locking Ramp | 2 | Thermoplastic | Contacts Not Included | 2.54 mm | 0.1 in | 26 | Receptacle | Free Hanging (In-Line) | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 1-87733-7 | Male or Female | Crimp | 0.1 in | 2.54 mm | Black | Strain Relief | Locking Ramp | 2 | Thermoplastic | Contacts Not Included | 2.54 mm | 0.1 in | 60 | Receptacle | Free Hanging (In-Line) | -65 ░C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.55 | |
| 10 | $ 5.74 | |||
| 100 | $ 5.14 | |||
| 1000 | $ 4.27 | |||
Description
General part information
87733 Series
20 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
