1241.3244.M

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 100MA 42V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 100MA 42V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.3244.M

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	100 mA
Electrical Life	20000000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Piezo
Voltage Rating - AC	42 V
Voltage Rating - DC	60 VDC

SWITCH PUSH SPST-NO 100MA 42V

Part	Actuator Marking	Panel Cutout Dimensions [diameter]	Electrical Life	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Type	Illumination Type, Color	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Ingress Protection	Actuator Type	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Illumination Voltage (Nominal)
SCHURTER Inc. 1241.3244.M	No Marking	22.3 mm	20000000 Cycles	Off-Mom	SPST-NO	85 °C	-40 °C	Piezo	Blue, LED	Silver	Quick Connect - 0.250" (6.3mm)	100 mA	IP67 - Dust Tight, Waterproof	Button, Flush, Round	42 V	60 VDC	Panel Mount, Front	2 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

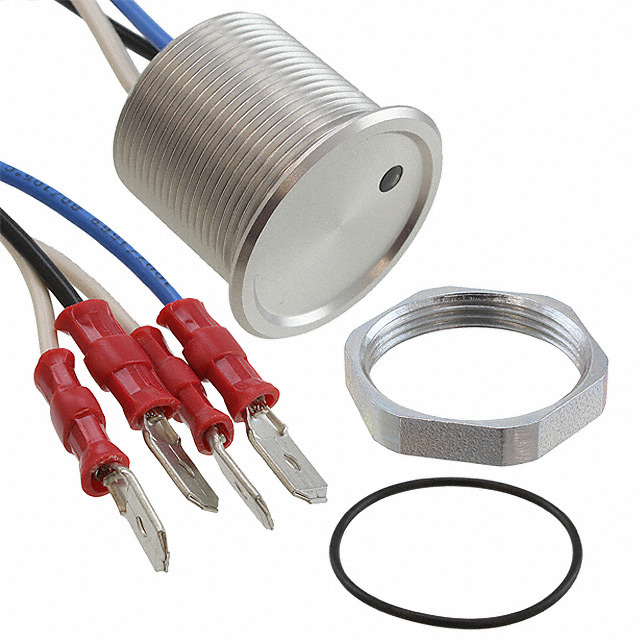

Pushbutton Switch SPST-NO Piezo Panel Mount, Front
