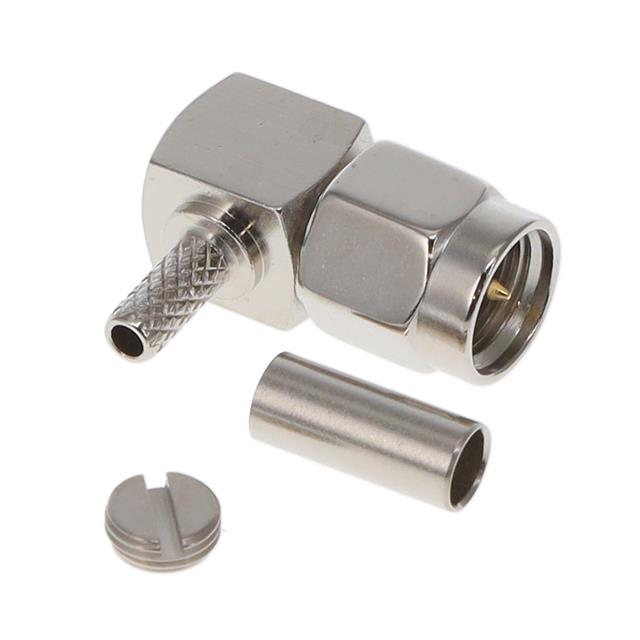

SMAMRA.P.DK.HT

Active

TAOGLAS

RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE PLUG, CRIMP, 50 OHM, RG174, RG316

Search across all available documentation for this part.

Active

TAOGLAS

RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE PLUG, CRIMP, 50 OHM, RG174, RG316

Technical Specifications

Parameters and characteristics for this part

Specification	SMAMRA.P.DK.HT

Body Finish	Nickel
Cable Group	RG-174, 316
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Housing Color	Silver
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Crimp

RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE PLUG, CRIMP, 50 OHM, RG174, RG316

Part	Mounting Type	Connector Type	Number of Ports	Body Finish	Shield Termination	Contact Termination	Connector Style	Center Contact Plating	Cable Group	Housing Color
TAOGLAS SMAMRA.P.DK.HT	Free Hanging (In-Line), Right Angle	Male Pin, Plug	1	Nickel	Crimp	Crimp	SMA	Gold	316, RG-174	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin Free Hanging (In-Line), Right Angle Crimp
