Specification	MAX14724PMB1#

Contents	Board
Function	8, 4 Multiplexer
Primary Attributes	Pmod™-Compatible
Secondary Attributes	I2C, SPI Interfaces, SPI Interface(s)
Supplied Contents	Board(s)
Type	Interface
Utilized IC / Part	MAX14724

MAX14724 Series

Part	Package Length	Package Name	Package Width	-3db Bandwidth	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Dual (Minimum)	Number of Circuits	Demultiplexer Outputs	Multiplexer Inputs	Charge Injection	Channel-to-Channel Matching (ΔRon)	Crosstalk	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	On-State Resistance (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Switch Time Toff (Typ)	Switch Time Ton (Max)	Current - Leakage (Max)	Voltage - Supply, Single (V+) (Minimum)	Voltage - Supply, Single (V+) (Maximum)	Package / Case	Mounting Type	Secondary Attributes	Supplied Contents	Contents	Primary Attributes	Utilized IC / Part	Type	Function
Analog Devices Inc./Maxim Integrated MAX14724ETP+T	4 mm	20-TQFN	4 mm	50 MHz	5 V	-5 V	1	4	8	-15 pC	500 mOhm	-65 dB	50 pF	85 pF	3 Ohm	85 °C	-40 °C	600 ns	2 µs	250 nA	1.6 V	5.5 V	20-WFQFN Exposed Pad	Surface Mount
Analog Devices Inc./Maxim Integrated MAX14724EWP+T	1.63 mm	20-WLP	2.03 mm	50 MHz	5 V	-5 V	1	4	8	-15 pC	500 mOhm	-65 dB	50 pF	85 pF	3 Ohm	85 °C	-40 °C	600 ns	2 µs	250 nA	1.6 V	5.5 V	20-WFBGA WLBGA	Surface Mount
Analog Devices Inc./Maxim Integrated MAX14724ETP+	4 mm	20-TQFN	4 mm	50 MHz	5 V	-5 V	1	4	8	-15 pC	500 mOhm	-65 dB	50 pF	85 pF	3 Ohm	85 °C	-40 °C	600 ns	2 µs	250 nA	1.6 V	5.5 V	20-WFQFN Exposed Pad	Surface Mount

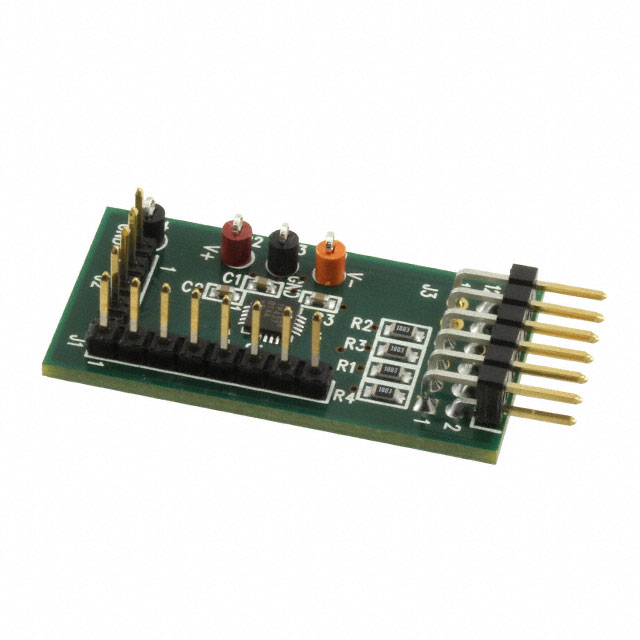

Analog Devices Inc./Maxim Integrated MAX14724PMB1#																									I2C SPI Interface(s) SPI Interfaces	Board(s)	Board	Pmod™-Compatible	MAX14724	Interface	4 Multiplexer 8
