Q-0J0680005036i

Active

Amphenol Custom Cable

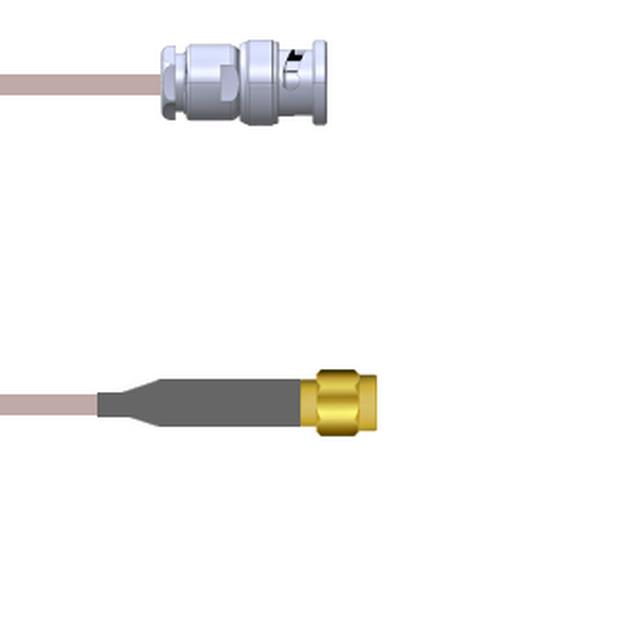

CBL ASSY RPSMA-BNC PLUG-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J0680005036i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC PLUG-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J0680005036i

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-0J0680 Series

Part	1st Contact Gender	Style	Frequency - Max [Max]	2nd Contact Gender	1st Connector	Cable Type	Length	Length	Length	2nd Connector	Color	1st Connector Mounting Type	Features	2nd Connector Mounting Type	Overall Impedance
Amphenol Custom Cable Q-0J0680005048i	Female	RP-SMA to BNC	4 GHz	Male	RP-SMA Plug	RG-316	1200 mm	4 ft	48 in	BNC Plug	Copper	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J0680005072i	Female	RP-SMA to BNC	4 GHz	Male	RP-SMA Plug	RG-316	1.8 m	6 ft	72 in	BNC Plug	Copper	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J0680005108i	Female	RP-SMA to BNC	4 GHz	Male	RP-SMA Plug	RG-316	2.7 m	9 ft	108 in	BNC Plug	Copper	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J06800052.5M	Female	RP-SMA to BNC	4 GHz	Male	RP-SMA Plug	RG-316	2.5 m	8.2 '	98.4 in	BNC Plug	Copper	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J0680003036i	Female	RP-SMA to BNC	4 GHz	Male	RP-SMA Plug	RG-174	91.44 cm		36 in	BNC Plug	Black	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J06800051.5M	Female	RP-SMA to BNC	4 GHz	Male	RP-SMA Plug	RG-316	1.5 m	4.9 ft	59.1 in	BNC Plug	Copper	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J0680003060i	Female	RP-SMA to BNC	4 GHz	Male	RP-SMA Plug	RG-174	1.5 m	5 ft	5 '	BNC Plug	Black	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J0680005024i	Female	RP-SMA to BNC	4 GHz	Male	RP-SMA Plug	RG-316	609.6 mm		24 "	BNC Plug	Copper	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J0680005036i	Female	RP-SMA to BNC	4 GHz	Male	RP-SMA Plug	RG-316	91.44 cm		36 in	BNC Plug	Copper	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 84.41
		25	$ 82.76
		50	$ 81.12
		100	$ 79.47
		250	$ 77.83

Description

General part information

Q-0J0680 Series

Cable Assembly Coaxial RP-SMA to BNC RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
