IJ5H-08-0300-S-2-01SP1

Active

Samtec Inc.

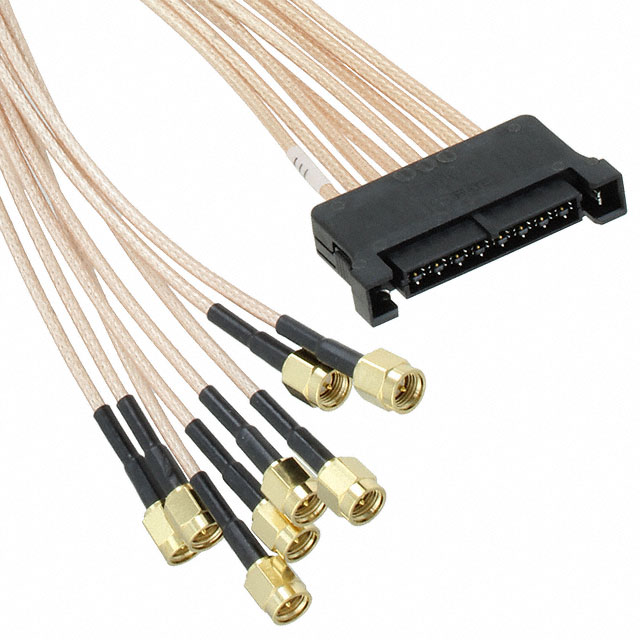

CBL ASSY IJ5H-SMA PLG-PL 11.811"

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSY IJ5H-SMA PLG-PL 11.811"

Technical Specifications

Parameters and characteristics for this part

Specification	IJ5H-08-0300-S-2-01SP1

1st Connector	IJ5H Plug
1st Connector Mounting Feature	Latch Lock
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	SMA Plug (8)
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	9.5 GHz
Length [x]	300 mm
Length [x]	11.811 in
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	IJ5H to SMA

Part	1st Connector	Overall Impedance	1st Connector Mounting Feature	Length [x]	Length [x]	1st Contact Gender	Frequency - Max [Max]	Color	2nd Connector	Cable Impedance	Cable Type	2nd Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Style
Samtec Inc. IJ5H-08-0300-S-2-01SP1	IJ5H Plug	50 Ohms	Latch Lock	300 mm	11.811 in	Male	9.5 GHz	Copper	SMA Plug (8)	50 Ohms	RG-316	Male	Panel Mount	Free Hanging (In-Line)	90 °C	-40 °C	Shielded	IJ5H to SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial IJ5H to SMA RG-316 11.811" (300.00mm)
