109BJ12MA2

Active

Sanyo Denki America Inc.

FAN BLOWER 126X32MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN BLOWER 126X32MM 12VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109BJ12MA2	109BJ12 Series

Air Flow	0.602 m³/min	0.602 - 0.77 m³/min
Air Flow	21.5 CFM	21.5 - 27.5 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.29 A	0.29 - 0.52 A
Fan Type	Blower	Blower
Features	-	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	40 dB(A)	40 - 46 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	3.48 W	3.48 - 6.24 W
RPM	1900 RPM	1900 - 2400 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	126 mm	126 mm
Size / Dimension [y]	5 "	5 "
Static Pressure	0.441 in H2O	0.441 - 0.826 in H2O
Static Pressure	110 Pa	110 - 205.8 Pa
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	10.2 VDC	10.2 VDC
Weight	0.639 lb	0.639 lb
Weight	289.85 g	289.85 g
Width [y]	32 mm	32 mm

FAN BLOWER 126X32MM 12VDC WIRE

Part	Voltage - Rated	Material - Blade	Air Flow	Air Flow	RPM	Width [y]	Termination	Weight	Weight	Bearing Type	Approval Agency	Noise	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Power (Watts)	Static Pressure	Static Pressure	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]
Sanyo Denki America Inc. 109BJ12MD2	12 VDC	Plastic	0.602 m³/min	21.5 CFM	1900 RPM	32 mm	3 Wire Leads	0.639 lb	289.85 g	Ball	CSA, TUV, UL	40 dB(A)	10.2 VDC	13.8 VDC	Blower	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Sensor	3.48 W	0.441 in H2O	110 Pa	Plastic	40000 Hrs	0.29 A	126 mm	Square/Rounded	5 "
Sanyo Denki America Inc. 109BJ12MA2	12 VDC	Plastic	0.602 m³/min	21.5 CFM	1900 RPM	32 mm	2 Wire Leads	0.639 lb	289.85 g	Ball	CSA, TUV, UL	40 dB(A)	10.2 VDC	13.8 VDC	Blower	-20 °C	70 °C	-20 C	70 °C		3.48 W	0.441 in H2O	110 Pa	Plastic	40000 Hrs	0.29 A	126 mm	Square/Rounded	5 "
Sanyo Denki America Inc. 109BJ12MC2	12 VDC	Plastic	0.602 m³/min	21.5 CFM	1900 RPM	32 mm	3 Wire Leads	0.639 lb	289.85 g	Ball	CSA, TUV, UL	40 dB(A)	10.2 VDC	13.8 VDC	Blower	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection, Speed Sensor (Tach)	3.48 W	0.441 in H2O	110 Pa	Plastic	40000 Hrs	0.29 A	126 mm	Square/Rounded	5 "
Sanyo Denki America Inc. 109BJ12HA2	12 VDC	Plastic	0.77 m³/min	27.5 CFM	2400 RPM	32 mm	2 Wire Leads	0.639 lb	289.85 g	Ball	CSA, TUV, UL	46 dB(A)	10.2 VDC	13.8 VDC	Blower	-20 °C	70 °C	-20 C	70 °C		6.24 W	0.826 in H2O	205.8 Pa	Plastic	40000 Hrs	0.52 A	126 mm	Square/Rounded	5 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 62.92

General part information

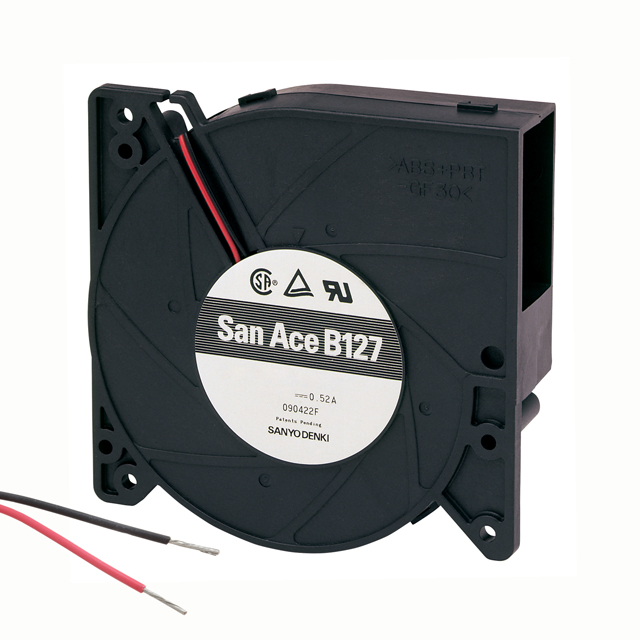

Fan Blower 12VDC Square/Rounded - 126mm L x 127mm H Ball 21.5 CFM (0.602m³/min) 2 Wire Leads
