776204-2

Active

TE Connectivity AMP Connectors

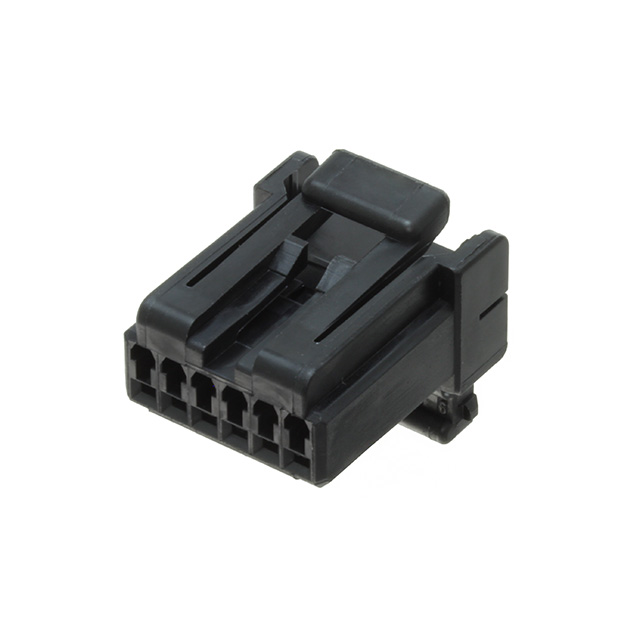

CONN PLUG HSG 6POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 6POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	776204-2

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

CONN PLUG HSG 6POS 2.50MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Fastening Type	Color	Mounting Type	Contact Type	Number of Rows	Insulation Material	Note	Pitch [x]	Pitch [x]	Contact Termination
TE Connectivity AMP Connectors 776204-2	-30 ░C	105 ░C	6	Plug	Latch Lock	Black	Free Hanging (In-Line)	Female Socket	1	Polybutylene Terephthalate (PBT)	Contacts Not Included	0.098 in	2.5 mm	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Plug Black 0.098" (2.50mm)
