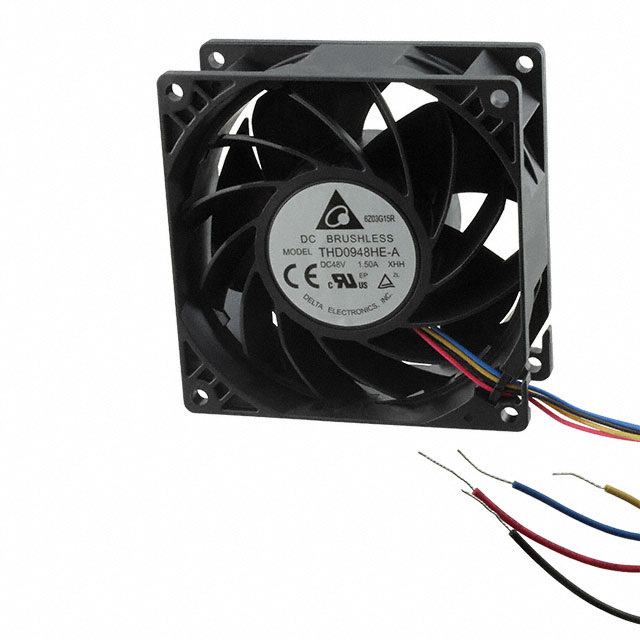

THD0948HE-AXHH

Active

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	144	$ 42.21

General part information

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 182.4 CFM (5.11m³/min) 4 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	THD0948HE-AXHH	THD0948 Series

Air Flow	5.11 m³/min	5.11 m³/min
Air Flow	182.4 CFM	182.4 CFM
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Bearing Type	Ball	Ball
Current Rating (Amps)	1.1 A	1.1 A
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	71 dB(A)	71 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	52.8 W	52.8 W
RPM	13500 RPM	13500 RPM
Static Pressure	3.435 in H2O	3.435 in H2O
Static Pressure	855.6 Pa	855.6 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	75 VDC	75 VDC
Voltage Range [Min]	36 VDC	36 VDC
Weight	216.36 g	216.36 g
Weight	0.477 lb	0.477 lb
Width [y]	38 mm	38 mm

FAN AXIAL 92X38MM 48VDC WIRE

Part	Power (Watts)	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Noise	Air Flow	Air Flow	Bearing Type	Lifetime @ Temp.	Termination	Width [y]	Material - Frame	Current Rating (Amps)	Weight	Weight	Fan Type	Voltage - Rated [custom]	Features	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency
Delta Electronics THD0948HE-A	52.8 W	Plastic	75 VDC	36 VDC	3.435 in H2O	855.6 Pa	71 dB(A)	5.11 m³/min	182.4 CFM	Ball	70000 Hrs	4 Wire Leads	38 mm	Plastic	1.1 A	216.36 g	0.477 lb	Tubeaxial	48 VDC	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	13500 RPM	-25 °C	-25 °C	70 °C	70 °C	CE, cURus, TUV
Delta Electronics THD0948HE-AXHH	52.8 W	Plastic	75 VDC	36 VDC	3.435 in H2O	855.6 Pa	71 dB(A)	5.11 m³/min	182.4 CFM	Ball	70000 Hrs	4 Wire Leads	38 mm	Plastic	1.1 A	216.36 g	0.477 lb	Tubeaxial	48 VDC	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	13500 RPM	-25 °C	-25 °C	70 °C	70 °C	CE, cURus, TUV
