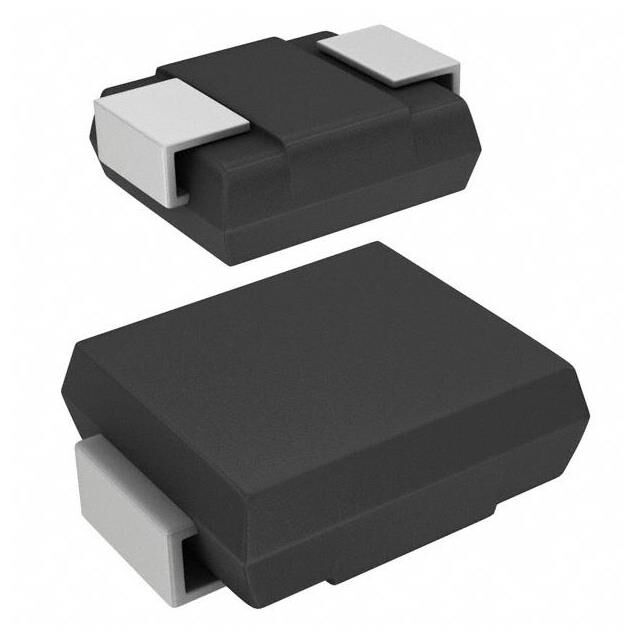

STPS4S200S

Active

STMicroelectronics

200V INDEPENDENT TYPE 870MV@4A 4A SMC SCHOTTKY DIODES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN +20

STPS4S200S

Active

STMicroelectronics

200V INDEPENDENT TYPE 870MV@4A 4A SMC SCHOTTKY DIODES ROHS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN +20

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STPS4S200S	STPS4S200 Series

Current - Average Rectified (Io)	4 A	4 A
Current - Reverse Leakage @ Vr	5 µA	5 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	-	-40 °C
Operating Temperature - Junction [Max]	175 °C	175 °C
Package / Case	SMC, DO-214AB	SMC, DO-214AB, SC-63, DPAK (2 Leads + Tab), TO-252-3
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	SMC	SMC, DPAK
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	200 V
Voltage - Forward (Vf) (Max) @ If	870 mV	870 mV

STPS4S200 Series

200 V, 4 A Schottky rectifier

Part	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Operating Temperature - Junction [Max]	Speed	Supplier Device Package	Technology	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Package / Case	Operating Temperature - Junction [Min]
STMicroelectronics STPS4S200S	870 mV	Surface Mount	175 °C	200 mA, 500 ns	SMC	Schottky	5 µA	200 V	4 A	DO-214AB, SMC
STMicroelectronics STPS4S200B-TR	870 mV	Surface Mount	175 ░C	200 mA, 500 ns	DPAK	Schottky	5 µA	200 V	4 A	DPAK (2 Leads + Tab), SC-63, TO-252-3	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.74
		10	$ 0.52
		100	$ 0.37
		500	$ 0.29
		1000	$ 0.26
	Digi-Reel®	1	$ 0.74
		10	$ 0.52
		100	$ 0.37
		500	$ 0.29
		1000	$ 0.26
	Tape & Reel (TR)	2500	$ 0.18
		5000	$ 0.18
LCSC	Piece	1	$ 0.40
		10	$ 0.32
		30	$ 0.29
		100	$ 0.24
		500	$ 0.22
		1000	$ 0.21
Newark	Each (Supplied on Full Reel)	1	$ 0.15

Description

General part information

STPS4S200 Series

Single chip Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

Packaged in SMB Flat Notch, SMB Flat, SMC and DPAK, the STPS4S200 is ideal for surface mounting and used in low voltage, high frequency inverters, free wheeling and polarity protection applications.
