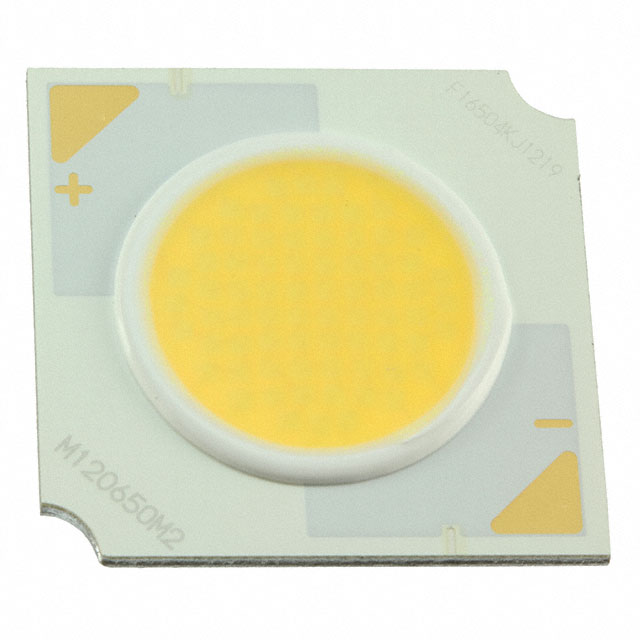

CLU721-1206C4-273H5K2

Active

Citizen

LED COB CLU721 WM WHT SQ 2700K

Search across all available documentation for this part.

Active

Citizen

LED COB CLU721 WM WHT SQ 2700K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLU721-1206C4-273H5K2	CLU721 Series

CCT (K)	2700 K	2700 - 5000 K
Color	White, Warm	Neutral, White, Cool, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	90	80 - 90
Current - Max [Max]	1.38 A	1.38 A
Current - Test	1.05 A	1.05 A
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	11 mm	11 mm
Lumens/Watt @ Current - Test	90 lm/W	90 - 122 lm/W
Luminous Flux @ Current/Temperature	3560 lm	3560 - 4836 lm
Size / Dimension [x]	19 mm	19 mm
Size / Dimension [y]	19 mm	19 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	37.6 V	37.6 V

LED COB CLU721 NEUT WH SQ 4000K

Part	Light Emitting Surface (LES) [diameter]	Type	Luminous Flux @ Current/Temperature	Color	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Current - Max [Max]	CCT (K)	Lens Type	Configuration	Current - Test
Citizen CLU721-1206C4-403M2K1	11 mm	Chip On Board (COB)	4750 lm	Neutral, White	80	120 lm/W	19 mm	19 mm	37.6 V	85 °C	1.38 A	4000 K	Flat	Square	1.05 A
Citizen CLU721-1206C4-503M2K1	11 mm	Chip On Board (COB)	4836 lm	Cool, White	80	122 lm/W	19 mm	19 mm	37.6 V	85 °C	1.38 A	5000 K	Flat	Square	1.05 A
Citizen CLU721-1206C4-353H5K2	11 mm	Chip On Board (COB)	3845 lm	Warm, White	90	97 lm/W	19 mm	19 mm	37.6 V	85 °C	1.38 A	3500 K	Flat	Square	1.05 A
Citizen CLU721-1206C4-273H5K2	11 mm	Chip On Board (COB)	3560 lm	Warm, White	90	90 lm/W	19 mm	19 mm	37.6 V	85 °C	1.38 A	2700 K	Flat	Square	1.05 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	48	$ 9.36

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU721 White, Warm Square
