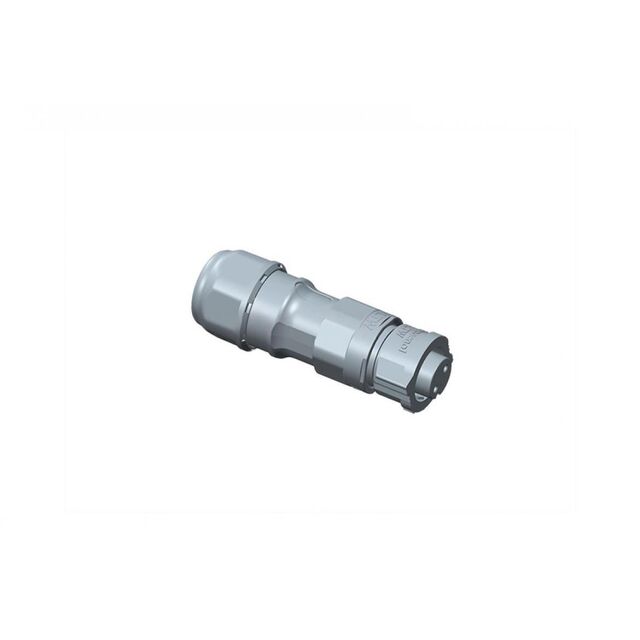

BB-02BFFB-QL8APP
ActiveAmphenol LTW
XLOK, B-10A, 02P, CABLE W/O SR
Deep-Dive with AI
Search across all available documentation for this part.
BB-02BFFB-QL8APP
ActiveAmphenol LTW
XLOK, B-10A, 02P, CABLE W/O SR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-02BFFB-QL8APP |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 A |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | B |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 10.76 | |
Description
General part information
BB-02BFFB Series
2 Position Circular Connector Plug, Female Sockets Screw
Documents
Technical documentation and resources
No documents available
