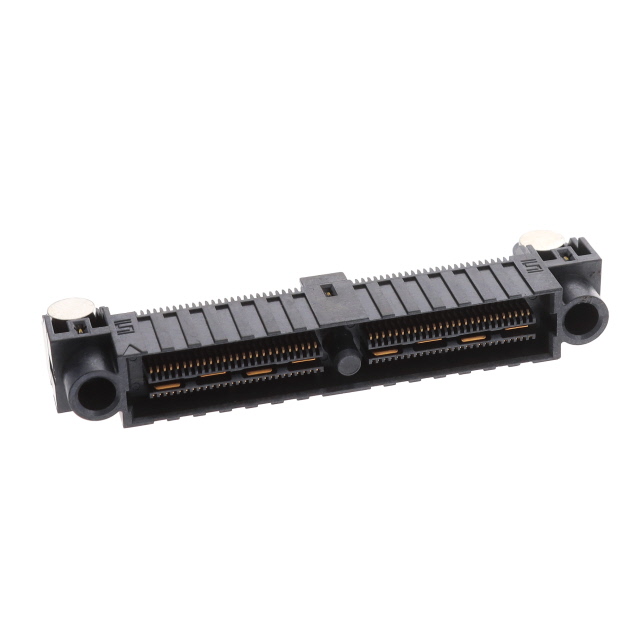

QFS-052-01-SL-D-RA-K-TR

Active

Samtec Inc.

CONN RCPT 104POS R/A SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQFS Datasheet Datasheet +2

QFS-052-01-SL-D-RA-K-TR

Active

Samtec Inc.

CONN RCPT 104POS R/A SMD GOLD

Deep-Dive with AI

DocumentsQFS Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QFS-052-01-SL-D-RA-K-TR

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Ground Bus (Plane)
Mounting Type	Surface Mount, Right Angle
Number of Positions	104
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QFS-052 Series

Part	Connector Type	Features	Mounting Type	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. QFS-052-01-SL-D-RA-K-TR	Center Strip Contacts Receptacle	Ground Bus (Plane) Pick and Place	Surface Mount Right Angle	104	Gold	10 Áin	0.25 Ám	2	0.64 mm	0.025 in
Samtec Inc. QFS-052-04.25-H-D-RF1	Center Strip Contacts Receptacle	Board Guide Ground Bus (Plane) RF Jacks (2)	Surface Mount	106	Gold	30 Áin	0.76 Ám	2	0.64 mm	0.025 in	10 mm 11 mm 14 mm	7.45 mm	0.293 in
Samtec Inc. QFS-052-02-S-D-RA-K	Center Strip Contacts Receptacle	Ground Bus (Plane) Pick and Place	Surface Mount Right Angle	104	Gold	30 Áin	0.76 Ám	2	0.64 mm	0.025 in
Samtec Inc. QFS-052-06.25-S-D	Center Strip Contacts Receptacle	Ground Bus (Plane)	Surface Mount	104	Gold	30 Áin	0.76 Ám	2	0.64 mm	0.025 in	12 mm 13 mm 16 mm			9.04 mm	0.356 in
Samtec Inc. QFS-052-02-SL-D-RA-PC4-K	Center Strip Contacts Receptacle	Ground Bus (Plane) Pick and Place Power Pins (8)	Surface Mount Right Angle		Gold	10 Áin	0.25 Ám	2	0.64 mm	0.025 in						104	8
Samtec Inc. QFS-052-04.25-L-D-PC4	Center Strip Contacts Receptacle	Ground Bus (Plane) Power Pins (8)	Surface Mount		Gold	10 Áin	0.25 Ám	2	0.64 mm	0.025 in	10 mm 11 mm 14 mm			7.06 mm	0.278 "	104	8
Samtec Inc. QFS-052-04.25-L-D-PC4-TR	Center Strip Contacts Receptacle	Ground Bus (Plane) Power Pins (8)	Surface Mount		Gold	10 Áin	0.25 Ám	2	0.64 mm	0.025 in	10 mm 11 mm 14 mm			7.06 mm	0.278 "	104	8
Samtec Inc. QFS-052-04.25-H-D-A-P	Center Strip Contacts Receptacle	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	104	Gold	30 Áin	0.76 Ám	2	0.64 mm	0.025 in	10 mm 11 mm 14 mm			7.06 mm	0.278 "
Samtec Inc. QFS-052-01-SL-D-RA-PC4-TR	Center Strip Contacts Receptacle	Ground Bus (Plane) Power Pins (8)	Surface Mount Right Angle		Gold	10 Áin	0.25 Ám	2	0.64 mm	0.025 in						104	8
Samtec Inc. QFS-052-01-H-D-RA	Center Strip Contacts Receptacle	Ground Bus (Plane)	Surface Mount Right Angle	104	Gold	30 Áin	0.76 Ám	2	0.64 mm	0.025 in
