EN2P6F26P

Active

Switchcraft Inc.

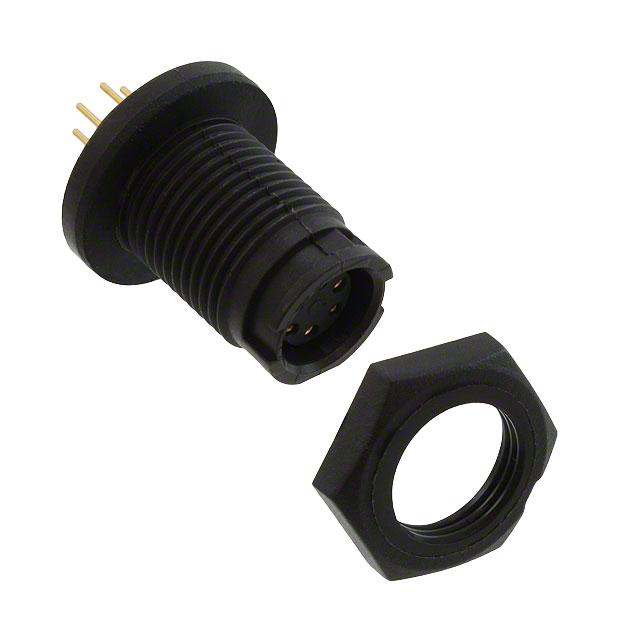

CONN RCPT FMALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2P6F26P	EN2P6F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	6	6
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Crimp, Solder Cup, Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT FMALE 6POS GOLD CRIMP

Part	Primary Material	Contact Material	Ingress Protection	Voltage Rating	Color	Mounting Feature	Fastening Type	Material Flammability Rating	Shielding	Connector Type	Orientation	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Applications	Termination	Insert Material	Mounting Type
Switchcraft Inc. EN2P6F26	Plastic	Copper Alloy	IP66, IP67, IP68	125 VAC	Black	Bulkhead - Front Side Nut	Bayonet Lock	UL94 V-0	Unshielded	Receptacle, Female Sockets	Keyed	6	85 °C	-40 °C	Gold	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Elastomer
Switchcraft Inc. EN2P6F26P	Plastic	Copper Alloy	IP66, IP67, IP68	125 VAC	Black	Bulkhead - Front Side Nut	Bayonet Lock	UL94 V-0	Unshielded	Receptacle, Female Sockets	Keyed	6	85 °C	-40 °C	Gold	Communication Systems, Industrial, Marine, Medical	Solder	Elastomer	Panel Mount, Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
