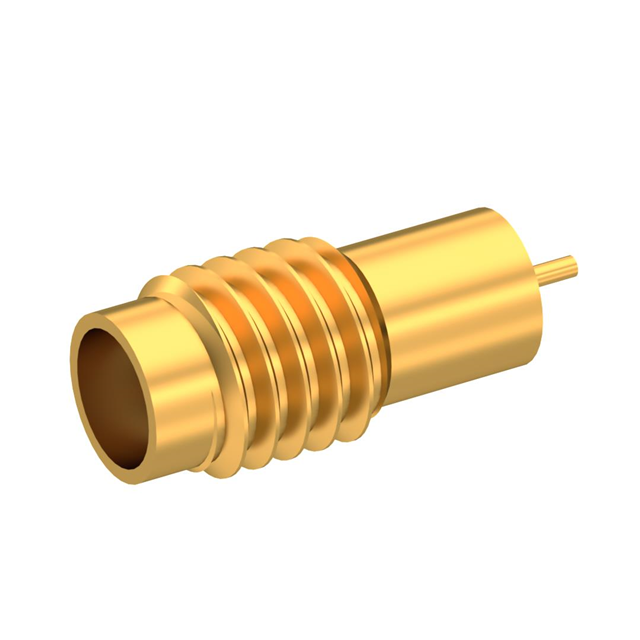

R121630003

Active

Radiall USA, Inc.

SSMA / THREAD-IN JACK RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMA / THREAD-IN JACK RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R121630003

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Mating Cycles	Mounting Type	Shield Termination	Body Material	Contact Termination	Body Finish	Housing Color	Impedance	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Frequency - Max [Max]	Dielectric Material	Center Contact Material	Connector Type	Center Contact Plating	Number of Ports
Radiall USA, Inc. R121630003	500	Through Hole	Solder	Stainless Steel	Solder	Gold	Gold	50 Ohms	250 VDC	155 °C	-55 °C	SSMA	18 GHz	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Female Socket Jack	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 104.76

General part information

SSMA Connector Jack, Female Socket 50 Ohms Through Hole Solder
