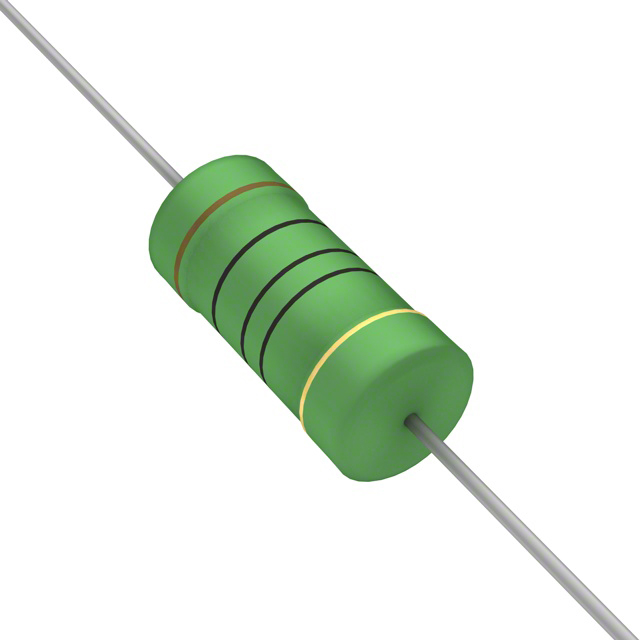

FW10A1000JA
ActiveBourns Inc.
RES 100 OHM 5% 1W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FW10A1000JA
ActiveBourns Inc.
RES 100 OHM 5% 1W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FW10A1000JA |
|---|---|
| Composition | Wirewound |
| Features | Safety, Fusible |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 1 W |
| Resistance | 100 Ohms |
| Size / Dimension [diameter] | 5.5 mm |
| Size / Dimension [diameter] | 0.217 " |
| Size / Dimension [x] | 0.472 in |
| Size / Dimension [x] | 12 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1000 | $ 0.11 | |
Description
General part information
FW10A Series
100 Ohms ±5% 1W Through Hole Resistor Axial Fusible, Safety Wirewound
