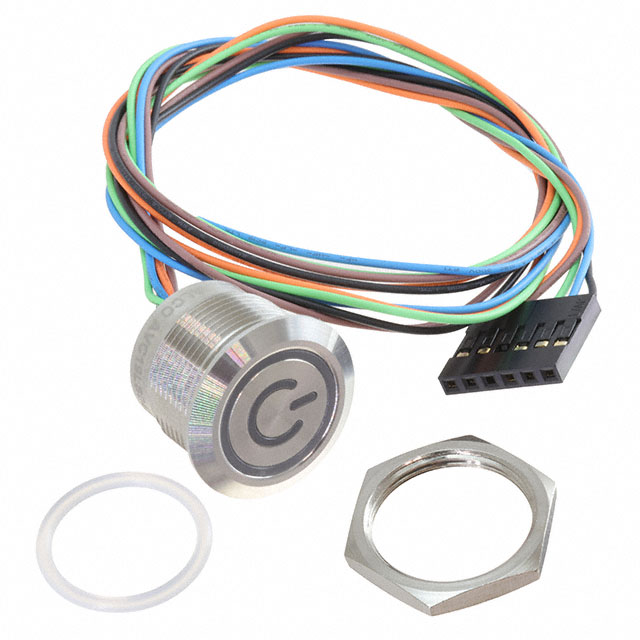

AVC19LS16FE13T5A04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST 1A

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST 1A

Technical Specifications

Parameters and characteristics for this part

Specification	AVC19LS16FE13T5A04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Electrical Life	50000000 Cycles
Illumination Type, Color [custom]	Blue/Green
Illumination Type, Color [custom]	LED
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-On
Type	Illuminated, Anti-Vandal, Capacitive
Voltage Rating - DC	24 V

Part	Mounting Type	Mechanical Life	Current Rating (Amps)	Color - Actuator/Cap	Circuit	Switch Function	Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Actuator Type	Voltage Rating - DC	Electrical Life	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Actuator Marking	Illumination Type, Color
TE Connectivity Raychem Cable Protection AVC19LS04FE03T5A04	Panel Mount Front	50000000 Cycles	1 A	Silver	SPST	Off-On	Anti-Vandal Capacitive Illuminated	19.2 mm	IP68 - Dust Tight Waterproof	Button Flush Round	24 V	50000000 Cycles	Blue/Green	LED	No Marking
TE Connectivity Raychem Cable Protection AVC19LAIOFE03T5A04	Panel Mount Front	50000000 Cycles	1 A	Silver	SPST	Off-On	Anti-Vandal Capacitive Illuminated	19.2 mm	IP68 - Dust Tight Waterproof	Button Flush Round	24 V	50000000 Cycles	Blue/Green	LED	No Marking
TE Connectivity Raychem Cable Protection AVC19LS04FE0DT5A04	Panel Mount Front	50000000 Cycles	1 A	Silver	SPST	Off-On	Anti-Vandal Capacitive Illuminated	19.2 mm	IP68 - Dust Tight Waterproof	Button Flush Round	24 V	50000000 Cycles			No Marking	Blue Green LED Red
TE Connectivity Raychem Cable Protection AVC19LS16FE13T5A04	Panel Mount Front	50000000 Cycles	1 A	Silver	SPST	Off-On	Anti-Vandal Capacitive Illuminated	19.2 mm	IP68 - Dust Tight Waterproof	Button Flush Round	24 V	50000000 Cycles	Blue/Green	LED	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Capacitive, Anti-Vandal, Illuminated Panel Mount, Front
