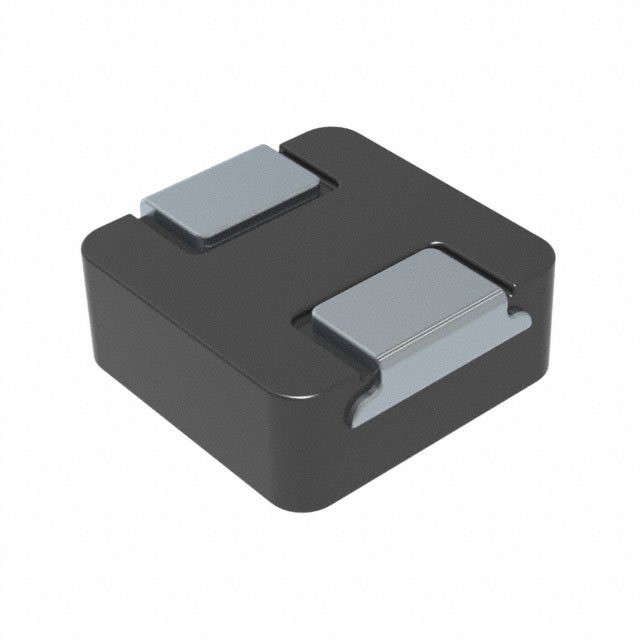

VCMT063T-3R3MN5T

Active

Delta Electronics/Cyntec

FIXED IND 3.3UH 7.5A 26MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

VCMT063T-3R3MN5T

Active

Delta Electronics/Cyntec

FIXED IND 3.3UH 7.5A 26MOHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VCMT063T-3R3MN5T	VCMT063T Series

Current - Saturation (Isat)	7.5 A	2.8 - 12.5 A
Current Rating (Amps)	7.5 A	3.2 - 13 A
DC Resistance (DCR)	-	110 mOhm
DC Resistance (DCR) [Max]	26 mOhm	7.8 - 70.5 mOhm
Height - Seated (Max)	3 mm	3 mm
Height - Seated (Max) [Max]	0.118 in	0.118 in
Inductance	3.3 µH	1 - 15 ÁH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Metal	Metal
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Unshielded	Unshielded, Shielded
Size / Dimension [x]	6.95 mm	6.95 mm
Size / Dimension [x]	0.274 "	0.274 "
Size / Dimension [y]	6.6 mm	6.6 mm
Size / Dimension [y]	0.26 "	0.26 "
Tolerance	20 %	20 %

VCMT063T Series

FIXED IND 4.7UH 6A 33.4MOHM SMD

Part	Current - Saturation (Isat)	Mounting Type	DC Resistance (DCR) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Shielding	Current Rating (Amps)	Inductance	Material - Core	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Package / Case	DC Resistance (DCR)
Delta Electronics/Cyntec VCMT063T-4R7MN5T	6 A	Surface Mount	33.4 mOhm	3 mm	0.118 in	Unshielded	6 A	4.7 ÁH	Metal	100 kHz	155 °C	-55 °C	6.95 mm	0.274 "	6.6 mm	0.26 "	20 %	Nonstandard
Delta Electronics/Cyntec VCMT063T-100MN5T	3.5 A	Surface Mount	70.5 mOhm	3 mm	0.118 in	Unshielded	4 A	10 µH	Metal	100 kHz	155 °C	-55 °C	6.95 mm	0.274 "	6.6 mm	0.26 "	20 %	Nonstandard
Delta Electronics/Cyntec VCMT063T-2R2MN5T	8 A	Surface Mount	16.5 mOhm	3 mm	0.118 in	Unshielded		2.2 µH	Metal	100 kHz	155 °C	-55 °C	6.95 mm	0.274 "	6.6 mm	0.26 "	20 %	Nonstandard
Delta Electronics/Cyntec VCMT063T-1R0MN5T	12.5 A	Surface Mount	7.8 mOhm	3 mm	0.118 in	Shielded	13 A	1 µH	Metal	100 kHz	155 °C	-55 °C	6.95 mm	0.274 "	6.6 mm	0.26 "	20 %	Nonstandard
Delta Electronics/Cyntec VCMT063T-6R8MN5T	4.5 A	Surface Mount	46.8 mOhm	3 mm	0.118 in	Unshielded	5.5 Amps	6.8 µH	Metal	100 kHz	155 °C	-55 °C	6.95 mm	0.274 "	6.6 mm	0.26 "	20 %	Nonstandard
Delta Electronics/Cyntec VCMT063T-3R3MN5T	7.5 A	Surface Mount	26 mOhm	3 mm	0.118 in	Unshielded	7.5 A	3.3 µH	Metal	100 kHz	155 °C	-55 °C	6.95 mm	0.274 "	6.6 mm	0.26 "	20 %	Nonstandard
Delta Electronics/Cyntec VCMT063T-150MN5T	2.8 A	Surface Mount		3 mm	0.118 in	Unshielded	3.2 A	15 µH	Metal	100 kHz	155 °C	-55 °C	6.95 mm	0.274 "	6.6 mm	0.26 "	20 %	Nonstandard	110 mOhm
Delta Electronics/Cyntec VCMT063T-1R5MN5T	9 A	Surface Mount	12.5 mOhm	3 mm	0.118 in	Unshielded	10.5 A	1.5 µH	Metal	100 kHz	155 °C	-55 °C	6.95 mm	0.274 "	6.6 mm	0.26 "	20 %	Nonstandard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.33
		10	$ 1.13
		25	$ 1.03
		50	$ 0.96
		100	$ 0.80
		250	$ 0.74
		500	$ 0.70
		1000	$ 0.64
	Digi-Reel®	1	$ 1.33
		10	$ 1.13
		25	$ 1.03
		50	$ 0.96
		100	$ 0.80
		250	$ 0.74
		500	$ 0.70
		1000	$ 0.64
	Tape & Reel (TR)	2000	$ 0.64
		4000	$ 0.62
		6000	$ 0.59
		10000	$ 0.57

Description

General part information

VCMT063T Series

3.3 µH Unshielded Inductor 7.5 A 26mOhm Max Nonstandard

Documents

Technical documentation and resources

No documents available
