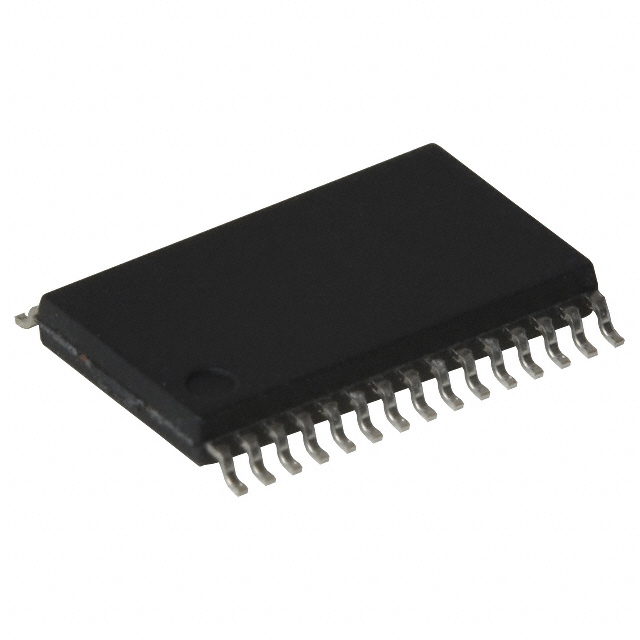

TB6634FNG,C,8,EL
ActiveToshiba Semiconductor and Storage
IC MOTOR DRVR 6.5V-16.5V 30SSOP
Deep-Dive with AI
Search across all available documentation for this part.
TB6634FNG,C,8,EL
ActiveToshiba Semiconductor and Storage
IC MOTOR DRVR 6.5V-16.5V 30SSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TB6634FNG,C,8,EL |
|---|---|
| Applications | General Purpose |
| Function | Controller - Commutation, Direction Management |
| Interface | Parallel |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -30 °C |
| Output Configuration | Half Bridge (3) |
| Package / Case | 30-LSSOP |
| Package / Case [y] | 5.6 mm |
| Package / Case [y] | 0.22 in |
| Supplier Device Package | 30-SSOP |
| Technology | Bi-CMOS |
| Voltage - Supply [Max] | 16.5 V |
| Voltage - Supply [Min] | 6.5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.49 | |
| 10 | $ 2.91 | |||
| 25 | $ 2.49 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.79 | |||
| 500 | $ 1.65 | |||
| 1000 | $ 1.53 | |||
| Digi-Reel® | 1 | $ 4.49 | ||
| 10 | $ 2.91 | |||
| 25 | $ 2.49 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.79 | |||
| 500 | $ 1.65 | |||
| 1000 | $ 1.53 | |||
| Tape & Reel (TR) | 2000 | $ 1.50 | ||
Description
General part information
TB6634 Series
Motor Driver Bi-CMOS Parallel 30-SSOP
Documents
Technical documentation and resources
No documents available
