13-610-P

Active

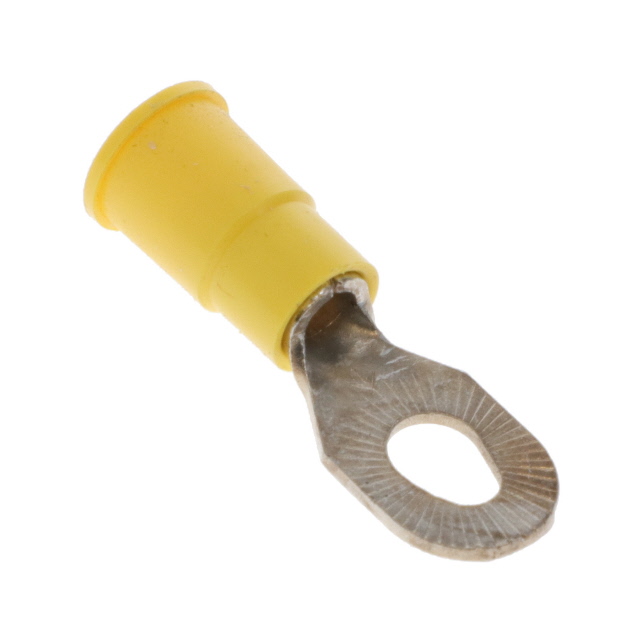

12-10 AWG VINYL INSULATED BUTTED SEAM MULTI-STUD RING TONGUE T

Search across all available documentation for this part.

Active

12-10 AWG VINYL INSULATED BUTTED SEAM MULTI-STUD RING TONGUE T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 6, 8, 10 Stud Multi-Stud 10-12 AWG Crimp

Technical documentation and resources

No documents available

Part	Stud/Tab Size	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Contact Finish	Insulation Diameter	Insulation Diameter	Features	Insulation	Color	Mounting Type	Width - Outer Edges	Width - Outer Edges	Contact Material	Terminal Type	Length - Overall	Length - Overall	Termination	Length - Overall [x]	Length - Overall [x]
3M 13-610-P	6 Stud, 8 Stud, 10 Stud	0.04 in	1.02 mm	12 AWG	10 AWG	Vinyl	Tin	0.25 "	6.35 mm	Butted Seam	Insulated	Yellow	Free Hanging (In-Line)	9.91 mm	0.39 in	Copper, ETP	Multi-Stud	30.23 mm	1.19 in	Crimp
3M 13-610-W	6 Stud, 8 Stud, 10 Stud	0.04 in	1.02 mm	12 AWG	10 AWG		Tin			Brazed Seam	Non-Insulated		Free Hanging (In-Line)	9.91 mm	0.39 in	Copper, ETP	Multi-Stud			Crimp	0.89 in	22.61 mm
