4266 025

Active

Altech Corporation

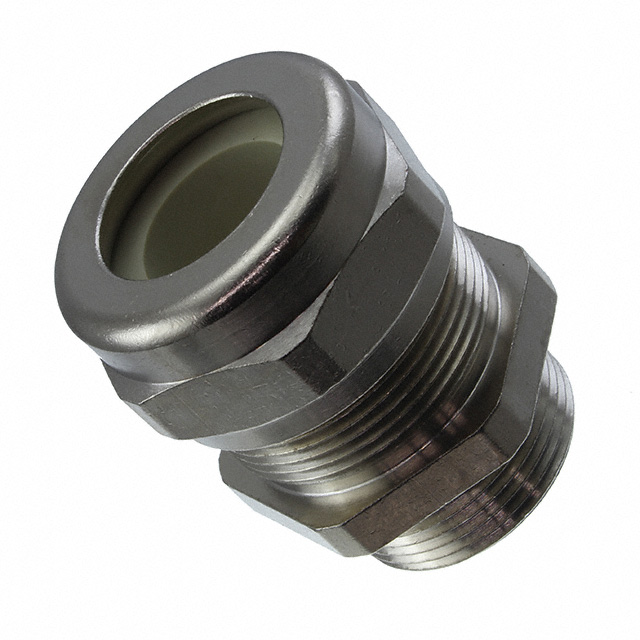

CABLE GLND 14-18.01MM PG21 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4266 025

Active

Altech Corporation

CABLE GLND 14-18.01MM PG21 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 83.77
		20	$ 76.87
		40	$ 71.45
		100	$ 67.51

Description

General part information

4266 Series

Cable Gland Brass, Nickel Plated PG21 Silver

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4266 025	4266 Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Outside Cable Diameter (Max)	-	9.5 mm
Outside Cable Diameter (Max)	-	10.5 - 14 mm
Outside Cable Diameter (Max)	-	0.413 - 0.551 "
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in	0.236 - 1.142 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm	0.374 - 29 in
Outside Cable Diameter (Min)	-	7 mm
Outside Cable Diameter (Min)	-	0.157 in
Outside Cable Diameter (Min)	-	4 mm
Outside Cable Diameter (Min) [Min] [diameter]	14 mm	1 - 25 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.551 in	0.039 - 0.984 in
Panel Hole Size	28.3 mm	15.2 - 28.3 mm
Panel Hole Size	1.114 in	0.598 - 1.114 in
Panel Hole Size	-	1.85 in
Panel Hole Size	-	47 mm
Thread Length	0.472 in	0.039 - 0.551 in
Thread Length	12 mm	1 - 14 mm
Thread Size	PG21	PG9, PG36, PG16, PG21, PG11
Type	Cable Gland	Cable Gland

4266 Series

CABLE GLAND 6.5-9.5MM PG9 BRASS

Part	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Type	Material	Operating Temperature [custom]	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Color	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Altech Corporation 4266 005	IP68 - Dust Tight, Waterproof	0.374 in	9.5 mm	O-Ring, Seal	Cable Gland	Brass, Nickel Plated	-25 °C, 100 °C	0.598 in	15.2 mm	0.236 in	6 mm	6.5 mm	0.256 in	PG9	Silver
Altech Corporation 4266 031	IP68 - Dust Tight, Waterproof	29 mm		O-Ring, Seal	Cable Gland	Brass, Nickel Plated	-25 °C, 100 °C			0.551 in	14 mm	25 mm	0.984 in	PG36	Silver	1.85 in	47 mm	1.142 in
Altech Corporation 4266 004	IP68 - Dust Tight, Waterproof	0.374 in	9.5 mm	O-Ring, Seal	Cable Gland	Brass, Nickel Plated	-25 °C, 100 °C	0.598 in	15.2 mm	0.236 in	6 mm	6.5 mm	0.256 in	PG9	Silver
Altech Corporation 4266 016	IP68 - Dust Tight, Waterproof			O-Ring, Seal	Cable Gland	Brass, Nickel Plated	-25 °C, 100 °C	0.886 in	22.5 mm	0.433 in	11 mm	1 mm	0.039 in	PG16	Silver				14 mm	0.551 "
Altech Corporation 4266 025	IP68 - Dust Tight, Waterproof	18.01 mm		O-Ring, Seal	Cable Gland	Brass, Nickel Plated	-25 °C, 100 °C	1.114 in	28.3 mm	0.472 in	12 mm	14 mm	0.551 in	PG21	Silver			0.709 in
Altech Corporation 4266 008	IP68 - Dust Tight, Waterproof			O-Ring, Seal	Cable Gland	Brass, Nickel Plated	-25 °C, 100 °C	0.732 in	18.6 mm	0.039 in	1 mm		0.276 in	PG11	Silver				10.5 mm	0.413 in	7 mm
Altech Corporation 4266 014	IP68 - Dust Tight, Waterproof			O-Ring, Seal	Cable Gland	Brass, Nickel Plated	-25 °C, 100 °C	0.886 in	22.5 mm	0.433 in	11 mm	6 mm	0.236 in	PG16	Silver				10.5 mm	0.413 in
Altech Corporation 4266 003	IP68 - Dust Tight, Waterproof	6 mm		O-Ring, Seal	Cable Gland	Brass, Nickel Plated	-25 °C, 100 °C	0.598 in	15.2 mm	0.236 in	6 mm			PG9	Silver			0.236 in				0.157 in	4 mm
Altech Corporation 4266 022	IP68 - Dust Tight, Waterproof	16.99 mm		O-Ring, Seal	Cable Gland	Brass, Nickel Plated	-25 °C, 100 °C	1.114 in	28.3 mm	0.472 in	12 mm	2 mm	0.079 in	PG21	Silver			0.669 in
