EN3C8FLX

Active

Switchcraft Inc.

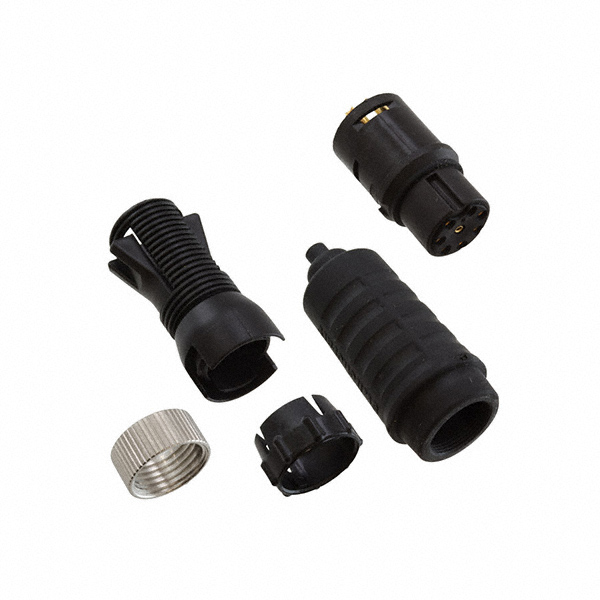

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3C8FLX

Active

Switchcraft Inc.

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.33
		10	$ 23.22
		25	$ 21.77
		50	$ 20.73
		100	$ 19.74
		300	$ 18.27
		500	$ 17.63

Description

General part information

EN3C8F Series

8 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C8FLX	EN3C8F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	4.06 - 6.73 mm
Cable Opening	-	0.16 - 0.265 in
Cable Opening [Max] [diameter]	0.38 in	0.38 in
Cable Opening [Max] [diameter]	9.65 mm	9.65 mm
Cable Opening [Min] [diameter]	5.84 mm	5.84 mm
Cable Opening [Min] [diameter]	0.23 in	0.23 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	6.5 A	6.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3C8F Series

CONN PLUG FMALE 8P GOLD SLDR CUP

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Type	Color	Material Flammability Rating	Current Rating (Amps)	Features	Fastening Type	Number of Positions	Ingress Protection	Insert Material	Applications	Connector Type	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Finish - Mating	Backshell Material, Plating	Primary Material	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Termination
Switchcraft Inc. EN3C8FLX	Unshielded	65 °C	-40 °C	Keyed	Free Hanging (In-Line)	Black	UL94 V-0	6.5 A	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	8	IP66/IP68	Elastomer	General Purpose, Instrumentation, Marine, Medical	Female Sockets, Plug	250 VAC	5.84 mm	0.38 in	9.65 mm	0.23 in	Gold	Thermoplastic	Plastic	Copper Alloy
Switchcraft Inc. EN3C8FKX	Unshielded	65 °C	-40 °C	Keyed	Free Hanging (In-Line)	Black	UL94 V-0	6.5 A	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	8	IP66/IP68	Elastomer	General Purpose, Instrumentation, Marine, Medical	Female Sockets, Plug	250 VAC					Gold	Thermoplastic	Plastic	Copper Alloy	4.06 mm, 6.73 mm	0.16 in, 0.265 in
Switchcraft Inc. EN3C8FCXPKG	Unshielded	65 °C	-40 °C	Keyed	Free Hanging (In-Line)	Black	UL94 V-0	6.5 A	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	8	IP66/IP68	Elastomer	General Purpose, Instrumentation, Marine, Medical	Female Sockets, Plug	250 VAC					Gold	Thermoplastic	Plastic	Copper Alloy	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Crimp
Switchcraft Inc. EN3C8FCX	Unshielded	65 °C	-40 °C	Keyed	Free Hanging (In-Line)	Black	UL94 V-0	6.5 A	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	8	IP66/IP68	Elastomer	General Purpose, Instrumentation, Marine, Medical	Female Sockets, Plug	250 VAC					Gold	Thermoplastic	Plastic	Copper Alloy	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Crimp
Switchcraft Inc. EN3C8FX	Unshielded	65 °C	-40 °C	Keyed	Free Hanging (In-Line)	Black	UL94 V-0	6.5 A	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	8	IP66/IP68	Elastomer	General Purpose, Instrumentation, Marine, Medical	Female Sockets, Plug	250 VAC					Gold	Thermoplastic	Plastic	Copper Alloy	4.06 mm, 6.73 mm	0.16 in, 0.265 in
