8808WB 0101000

Active

Belden Inc.

2 #8 PVC/NYL PVC

Search across all available documentation for this part.

Active

Belden Inc.

2 #8 PVC/NYL PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8808WB 0101000

Cable Type	Speaker
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	22 AWG
Conductor Strand	19
Features	Rip Cord, Water-Blocked
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Usage	Audio
Wire Gauge	8 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Conductor Strand	Conductor Strand	Features	Cable Type	Jacket Color	Length	Length	Wire Gauge	Usage	Jacket (Insulation) Material	Conductor Insulation	Number of Conductors
Belden Inc. 8808WB 0101000	1.6 mm	0.063 in	Copper Bare	22 AWG	19	Rip Cord Water-Blocked	Speaker	Black	1000 ft	304.8 m	8 AWG	Audio	Poly-Vinyl Chloride (PVC)	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

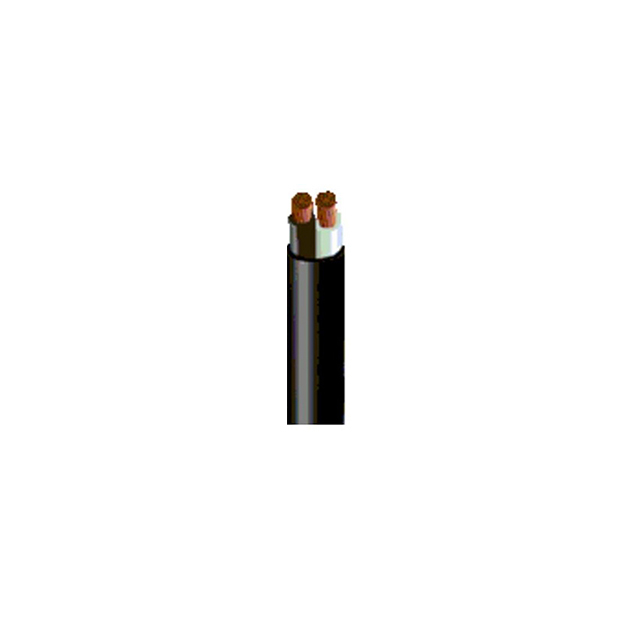

2 (1 Pair) Conductor Speaker Cable Black 8 AWG 1000.0' (304.8m)

Technical documentation and resources
