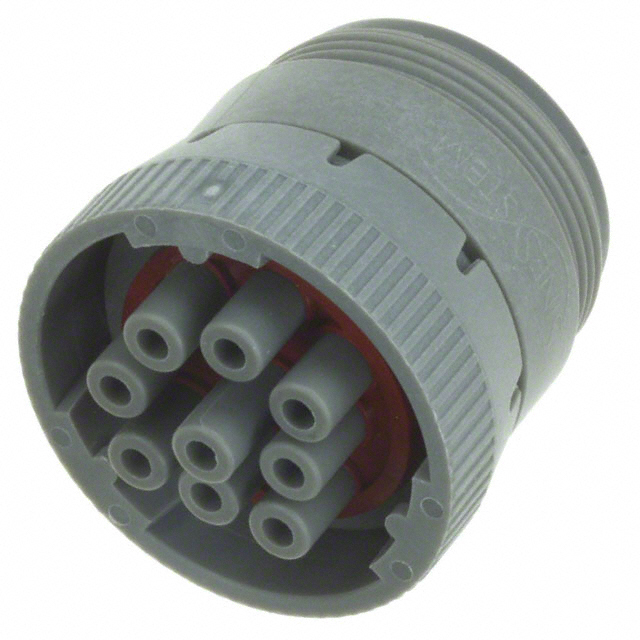

AHD16-9-96S

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 9POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 9POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG HSG FMALE 9POS INLINE

Part	Contact Size	Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Fastening Type	Contact Type	Housing Color	Features	Number of Positions	Shielding	Orientation	Connector Type	Contact Shape	Note
Amphenol Sine Systems Corp AHD16-9-96S	16	For Female Sockets	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Bayonet Lock	Crimp	Gray	Coupling Nut	9	Unshielded	Keyed	Plug Housing	Circular	Contacts Not Included
Amphenol Sine Systems Corp AHD16-6-12S	12	For Female Sockets	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Push-Pull	Crimp	Gray		6	Unshielded	Keyed	Plug Housing	Circular	Contacts Not Included
Amphenol Sine Systems Corp AHD16-9-1939S80	16	For Female Sockets	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Bayonet Lock	Crimp	Green	Coupling Nut	9	Unshielded	Keyed	Plug Housing	Circular	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
