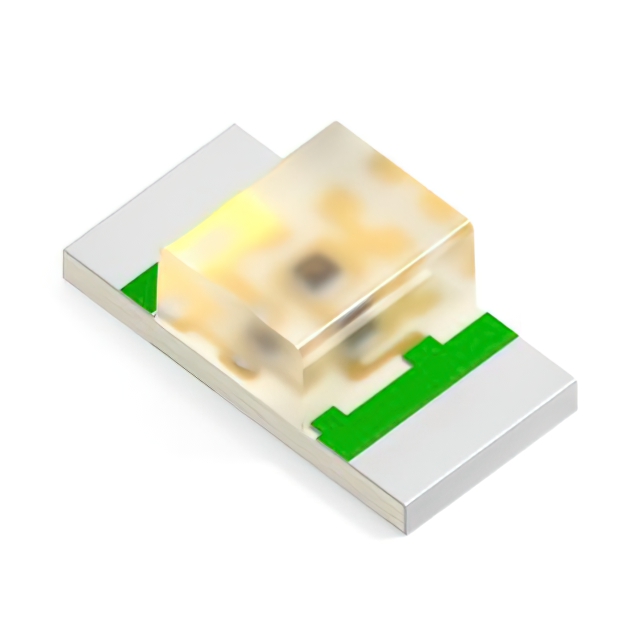

XZBGA55W-2
ObsoleteSunLED
LED GREEN CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZBGA55W-2
ObsoleteSunLED
LED GREEN CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZBGA55W-2 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 2.5 mm |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 178 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 520 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.30 | |
| 6000 | $ 0.29 | |||
| 10000 | $ 0.28 | |||
Description
General part information
XZBGA55 Series
Green 525nm LED Indication - Discrete 3.2V 1206 (3216 Metric)
