45-2828.2D90.001

Active

EAO

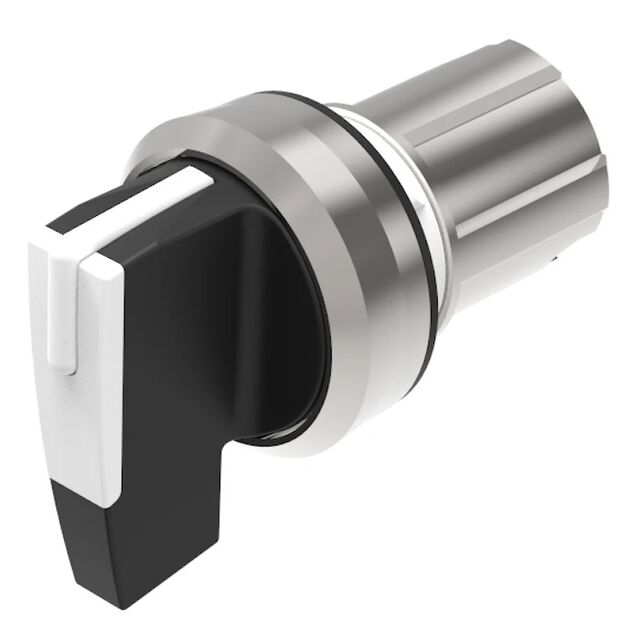

SELECTOR SWITCH ACTUATOR 2 POSITIONS WHITE 0-MAIN 90? LONG LEVER FRONT/HOUSING METAL

Search across all available documentation for this part.

Active

EAO

SELECTOR SWITCH ACTUATOR 2 POSITIONS WHITE 0-MAIN 90? LONG LEVER FRONT/HOUSING METAL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Selector Non-Illuminated

Technical documentation and resources

Specification	45-2828.2D90.001	45-2828 Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Selector	Selector
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	22.3 mm	22.3 - 30.5 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Maintained	Maintained

Part	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions	Type	Illumination	Actuator Type	Requires
EAO 45-2828.2D90.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.4C90.001	45, EAO	30.5 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.2C20.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.1C60.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.1C50.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.3C90.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.2C30.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.1C90.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.4D20.001	45, EAO	30.5 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.1C20.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
