1840840-1

Active

TRP Connector B.V.

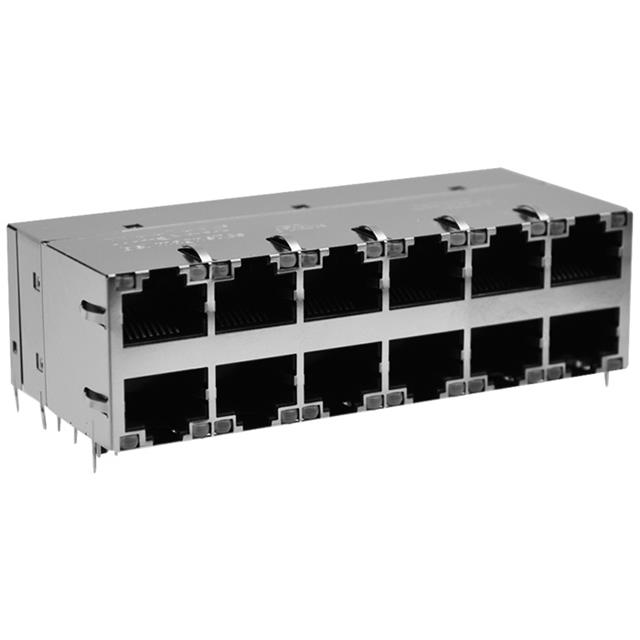

CONN JACK 12PORT 1000 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 12PORT 1000 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1840840-1

Applications	Power over Ethernet+ (PoE+), 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Guide
Height Above Board	25.5 mm
Height Above Board	1.004 in
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Cores per Jack	9
Number of Ports	12
Number of Rows	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up and Down
Termination	Solder

CONN JACK 12PORT 1000 BASE-T PCB

Part	Orientation	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Shield Material	Height Above Board	Height Above Board	Features	Connector Type	Number of Ports	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	LED Color	Contact Material	Number of Rows	Termination	Tab Direction	Applications	Mounting Type	Number of Cores per Jack
TRP Connector B.V. 1840840-1	90 °	Gold	50 µin	1.27 µm	Brass	25.5 mm	1.004 in	Board Guide	RJ45	12	Shielded, EMI Finger	70 °C	0 °C	Thermoplastic	Does Not Contain LED	Phosphor Bronze	2	Solder	Up and Down	10/100/1000 Base-T, Power over Ethernet+ (PoE+)	Through Hole	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 55.12

General part information

12 Port RJ45Through Hole 10/100/1000 Base-T, Power over Ethernet+ (PoE+)
