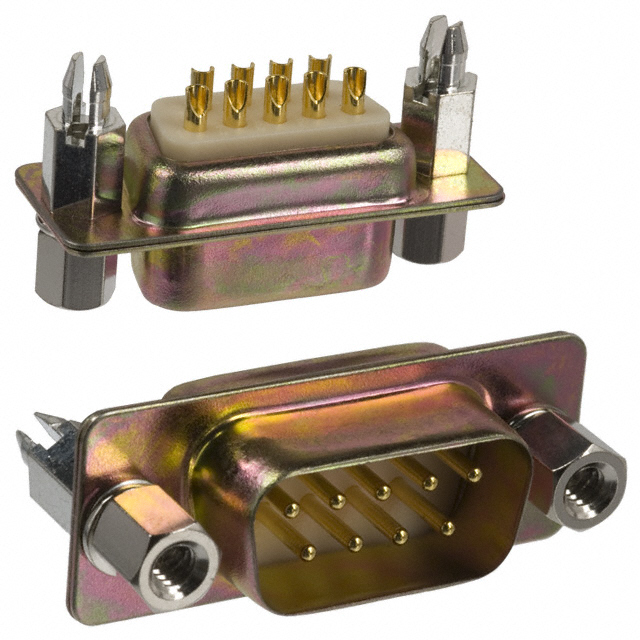

172-E09-101R911

Obsolete

MH Connectors

CONN D-SUB PLUG 9POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet

172-E09-101R911

Obsolete

MH Connectors

CONN D-SUB PLUG 9POS PNL MNT

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-E09-101R911

Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Mating Side, Female Screwlock (4-40), Cable Side (4-40)
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	20 AWG

172-E09 Series

Part	Current Rating (Amps)	Flange Feature	Shell Material, Finish	Connector Style	Material Flammability Rating	Contact Material	Connector Type	Contact Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Color	Contact Finish Thickness	Number of Rows	Features	Termination	Mounting Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness
MH Connectors 172-E09-101R031	5 A	4-40	Steel Yellow Chromate Plated	D-Sub	UL94 V-0	Brass	Male Pins Plug	Signal	Gold	20 AWG	26 AWG	9	DE E	1	Polybutylene Terephthalate (PBT)	White	Flash	2
MH Connectors 172-E09-103R031	5 A	4-40	Nickel Plated Steel	D-Sub	UL94 V-0	Brass	Male Pins Plug	Signal	Gold	20 AWG	26 AWG	9	DE E	1	Polybutylene Terephthalate (PBT)	White	Flash	2	Grounding Indents
MH Connectors 172-E09-212-021	5 A	4-40 Board Side		D-Sub	UL94 V-0		Receptacle Female Sockets	Signal	Gold			9	DE E	1	Polybutylene Terephthalate (PBT)	White	Flash	2		Solder	Panel Mount Through Hole
MH Connectors 172-E09-201R031	5 A	4-40	Steel Yellow Chromate Plated	D-Sub	UL94 V-0	Brass	Receptacle Female Sockets	Signal	Gold	20 AWG	26 AWG	9	DE E	1	Polybutylene Terephthalate (PBT)	White	Flash	2
MH Connectors 172-E09-113R001	5 A	Housing/Shell (Unthreaded)	Nickel Plated Steel	D-Sub	UL94 V-0	Brass	Male Pins Plug	Signal	Gold			9	DE E	1	Polyamide (PA6T) Nylon 6T	White	Flash	2	Grounding Indents	Solder	Panel Mount Through Hole
MH Connectors 172-E09-202R032	5 A	4-40 Board Side		D-Sub	UL94 V-0	Brass	Receptacle Female Sockets	Signal	Gold			9	DE E	1	Polyamide (PA6T) Nylon 6T	Black		2			Free Hanging (In-Line)	Metal	-55 °C	125 °C	0.76 Ám	30 Áin
MH Connectors 172-E09-102R031	5 A	4-40		D-Sub	UL94 V-0	Brass	Male Pins Plug	Signal	Gold	20 AWG	26 AWG	9	DE E	1	Polybutylene Terephthalate (PBT)	White	Flash	2	Grounding Indents
MH Connectors 172-E09-111R011	5 A	4-40 Board Side	Steel Yellow Chromate Plated	D-Sub	UL94 V-0	Brass	Male Pins Plug	Signal	Gold			9	DE E	1	Polyamide (PA6T) Nylon 6T	White	Flash	2		Solder	Panel Mount Through Hole
MH Connectors 172-E09-212-911	5 A	Board Side (4-40) Mating Side Female Screwlock (4-40)		D-Sub	UL94 V-0		Receptacle Female Sockets	Signal	Gold			9	DE E	1	Polybutylene Terephthalate (PBT)	White	Flash	2		Solder	Panel Mount Through Hole
MH Connectors 172-E09-203R001	5 A	Housing/Shell (Unthreaded)	Nickel Plated Steel	D-Sub	UL94 V-0	Brass	Receptacle Female Sockets	Signal	Gold	20 AWG	26 AWG	9	DE E	1	Polybutylene Terephthalate (PBT)	White	Flash	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

172-E09 Series

9 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Backshell Reference Guide

Datasheet
