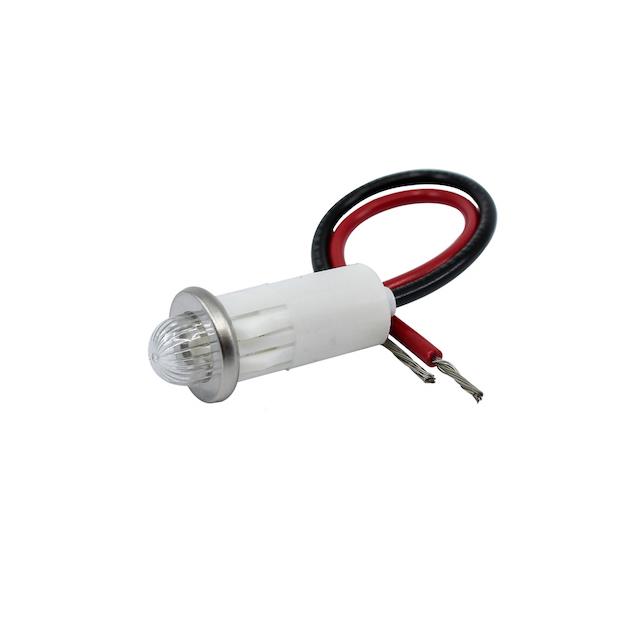

1092M2-125VAC

Active

Visual Communications Company - VCC

PMI RND .5" LED CLR SMALL 125V W

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

PMI RND .5" LED CLR SMALL 125V W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	200	$ 4.06

General part information

LED Panel Indicator Clear Clear 125V 25mA Wire Leads - 4.8" (121.92mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

PMI RND .5" LED CLR SMALL 125V W

Part	Wavelength - Peak	Lamp Color	Type	Lens Transparency	Current	Voltage	Lens Size	Lens Size	Millicandela Rating	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Lens Color	Lens Style	Termination Style	Panel Cutout Shape	Termination Style	Termination Style
Visual Communications Company - VCC 1092M2-125VAC	468 nm	Clear	LED	Clear	25 mA	125 V	T-1 3/4	5 mm	7000 mcd	12.7 mm	0.5 in	AC	Colorless	Round with Domed Top	Wire Leads - 4.8" (121.92mm)	Round
Visual Communications Company - VCC 1092M3-12V		Amber	LED	Diffused	25 mA	12 V			13000 mcd	12.7 mm	0.5 in	DC	Amber	Round with Domed Top	Wire Leads	Round	4.6 in	116.84 mm
Visual Communications Company - VCC 1092M1-125VAC		Red	LED	Diffused	25 mA	125 V			13000 mcd	12.7 mm	0.5 in	AC	Red	Round with Domed Top	Wire Leads	Round	4.6 in	116.84 mm
Visual Communications Company - VCC 1092M2-28V	468 nm	Clear	LED	Clear	25 mA	28 V	T-1 3/4	5 mm	7000 mcd	12.7 mm	0.5 in	AC/DC	Colorless	Round with Domed Top	Wire Leads - 4.8" (121.92mm)	Round
Visual Communications Company - VCC 1092M6-28V		Blue	LED	Clear	25 mA	28 V			3200 mcd	12.7 mm	0.5 in	DC	Blue	Round with Domed Top	Wire Leads	Round	4.6 in	116.84 mm
Visual Communications Company - VCC 1092M1-12V		Red	LED	Diffused	25 mA	12 V			13000 mcd	12.7 mm	0.5 in	DC	Red	Round with Domed Top	Wire Leads	Round	4.6 in	116.84 mm
Visual Communications Company - VCC 1092M2-12V	468 nm	Clear	LED	Clear	25 mA	12 V	T-1 3/4	5 mm	7000 mcd	12.7 mm	0.5 in	AC/DC	Colorless	Round with Domed Top	Wire Leads - 4.8" (121.92mm)	Round
Visual Communications Company - VCC 1092M6-12V		Blue	LED	Clear	25 mA	12 V			3200 mcd	12.7 mm	0.5 in	DC	Blue	Round with Domed Top	Wire Leads	Round	4.6 in	116.84 mm
