L6R24-240

Active

Tri-Mag, LLC

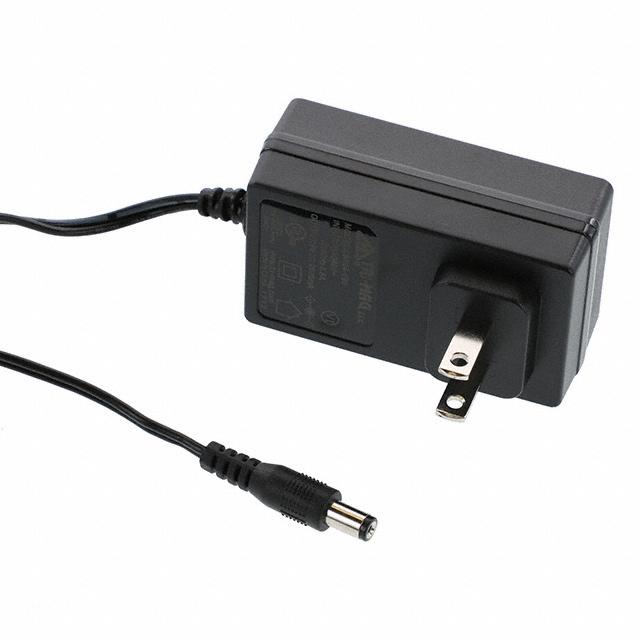

AC/DC WALL MOUNT ADAPTER 24V 24W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R24-240

Active

Tri-Mag, LLC

AC/DC WALL MOUNT ADAPTER 24V 24W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L6R24-240	L6R24 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cUL, FCC, UL	cUL, FCC, UL
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	1 A	1 - 800 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II), Desktop (Class II)
Input Connector	NEMA 1-15P	NEMA 1-15P, IEC 320-C8
Input Type	Fixed Blade	Fixed Blade, Cord
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	24 W	23 - 25 W
Region Utilized	North America	North America, International
Size / Dimension [x]	71.1 mm	71.1 - 91.9 mm
Size / Dimension [x]	2.8 in	2.8 - 3.62 in
Size / Dimension [y]	1.7 "	1.7 - 1.79 "
Size / Dimension [y]	43.2 mm	43.2 - 45.4 mm
Size / Dimension [z]	33 mm	27.5 - 33 mm
Size / Dimension [z]	1.3 "	1.08 - 1.3 "
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	24 V	18 - 36 V
Weight	-	0.309 lb
Weight	-	140 g

L6R24 Series

AC/DC WALL MOUNT ADAPTER 24V 24W

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Form	Region Utilized	Applications	No Load Power Consumption	Efficiency	Approval Agency	Standard Number	Operating Temperature [Max]	Cord Length	Cord Length	Input Connector	Input Type	Polarization	Weight	Weight
Tri-Mag, LLC L6R24-240	71.1 mm	33 mm	2.8 in	1.3 "	1.7 "	43.2 mm	24 V	1 A	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	24 W	Wall Mount (Class II)	North America	ITE (Commercial)	100 mW	Level VI	cUL, FCC, UL	62368-1	40 °C	1.5 m	59 in	NEMA 1-15P	Fixed Blade	Positive Center
Tri-Mag, LLC L6R24D-360-C8	91.9 mm	27.5 mm	3.62 in	1.08 "	1.79 "	45.4 mm	36 V	700 mA	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	25 W	Desktop (Class II)	International	ITE (Commercial)	100 mW	Level VI	cUL, FCC, UL	62368-1	40 °C	1.5 m	59 in	IEC 320-C8	Cord	Positive Center	0.309 lb	140 g
Tri-Mag, LLC L6R24D-240-C8	91.9 mm	27.5 mm	3.62 in	1.08 "	1.79 "	45.4 mm	24 V	1 A	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	24 W	Desktop (Class II)	International	ITE (Commercial)	100 mW	Level VI	cUL, FCC, UL	62368-1	40 °C	1.5 m	59 in	IEC 320-C8	Cord	Positive Center	0.309 lb	140 g
Tri-Mag, LLC L6R24D-180-C8	91.9 mm	27.5 mm	3.62 in	1.08 "	1.79 "	45.4 mm	18 V	1.3 A	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	23 W	Desktop (Class II)	International	ITE (Commercial)	100 mW	Level VI	cUL, FCC, UL	62368-1	40 °C	1.5 m	59 in	IEC 320-C8	Cord	Positive Center	0.309 lb	140 g
Tri-Mag, LLC L6R24D-300-C8	91.9 mm	27.5 mm	3.62 in	1.08 "	1.79 "	45.4 mm	30 VDC	800 mA	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	24 W	Desktop (Class II)	International	ITE (Commercial)	100 mW	Level VI	cUL, FCC, UL	62368-1	40 °C	1.5 m	59 in	IEC 320-C8	Cord	Positive Center	0.309 lb	140 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.39
		5	$ 10.11
		10	$ 9.55
		25	$ 8.98
		50	$ 8.42
		100	$ 7.86
		300	$ 7.58
		500	$ 7.47

Description

General part information

L6R24 Series

24V 24 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources
