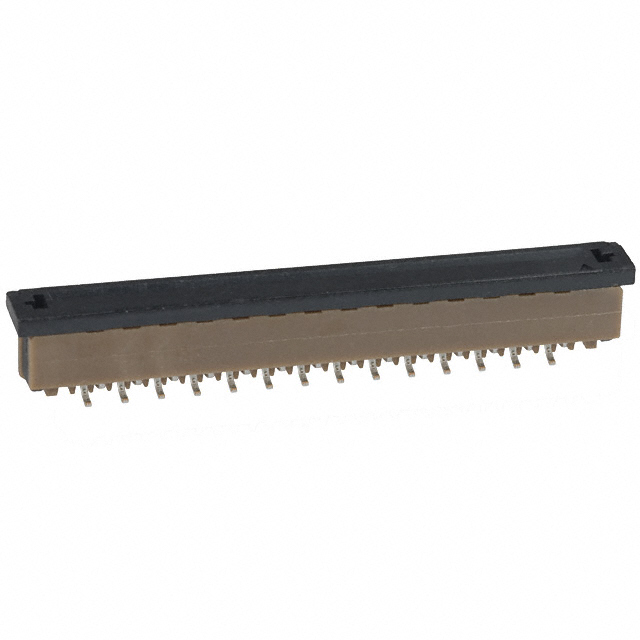

SFW26S-2STE1

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC VERT 26POS 1MM SMD

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC VERT 26POS 1MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFW26S-2STE1

Actuator Color	Black
Actuator Material	Thermoplastic, Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin Alloy
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	5.3 mm
Height Above Board	0.209 in
Housing Color	Brown
Housing Material	Thermoplastic, Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount
Number of Positions	26
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

Part	Termination	FFC, FCB Thickness	Contact Material	Locking Feature	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Number of Positions	Flat Flex Type	Mating Cycles	Material Flammability Rating	Actuator Material	Voltage Rating	Connector/Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Housing Material	Cable End Type	FFC, FCB Thickness [z]	Actuator Color
Amphenol ICC (FCI) SFW26S-2STE1LF	Solder	0.33 mm	Phosphor Bronze	Slide Lock	5.3 mm	0.209 in	Tin	Surface Mount	26	FFC FPC	20	UL94 V-0	Thermoplastic Glass Filled	100 V	Contacts Vertical - 1 Sided	0.039 in	1 mm	105 ░C	-55 °C	Brown	Thermoplastic Glass Filled
Amphenol ICC (FCI) SFW26S-2STME1LF	Kinked Pin	0.3 mm	Phosphor Bronze		5.3 mm	0.209 in	Tin	Surface Mount	26	FFC FPC	20	UL94 V-0	Thermoplastic Glass Filled	100 V	Contacts Vertical - 1 Sided	0.039 in	1 mm	105 ░C	-55 °C	Brown	Thermoplastic Glass Filled	Straight Tapered
Amphenol ICC (FCI) SFW26S-2STE1	Solder		Phosphor Bronze	Slide Lock	5.3 mm	0.209 in	Tin Alloy	Surface Mount	26	FFC FPC	20	UL94 V-0	Thermoplastic Glass Filled	100 V	Contacts Vertical - 1 Sided	0.039 in	1 mm	85 °C	-55 °C	Brown	Thermoplastic Glass Filled	Straight Tapered	0.3 mm 0.33 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
