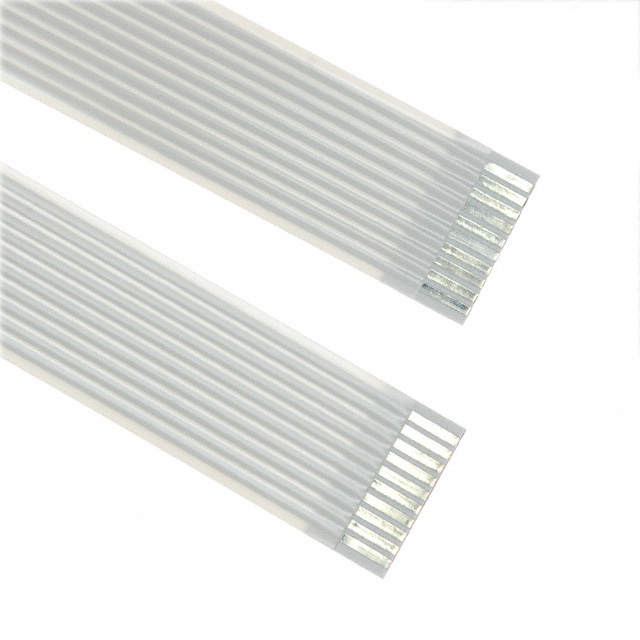

100R10-203B

Active

Parlex USA LLC

CABLE FFC/FPC 10POS 1MM 7.99"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 10POS 1MM 7.99"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R10-203B	100R10 Series

Cable Type	FPC, FFC	FPC, FFC
Length	-	50.8 - 457.2 mm
Length	-	2 - 18 in
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Length [x]	203 mm	152 - 203 mm
Length [x]	7.992 in	5.984 - 12 in
Number of Conductors	10	10
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 10POS 1MM 2"

Part	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Number of Conductors	Pitch [x]	Pitch [x]	Cable Type	Length [x]	Length [x]
Parlex USA LLC 100R10-51B	50.8 mm	2 in	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	10	0.039 in	1 mm	FFC, FPC
Parlex USA LLC 100R10-305B	304.8 mm		0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	10	0.039 in	1 mm	FFC, FPC	12 in
Parlex USA LLC 100R10-457B	457.2 mm	18 "	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	10	0.039 in	1 mm	FFC, FPC
Parlex USA LLC 100R10-76B	76.2 mm	3 in	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	10	0.039 in	1 mm	FFC, FPC
Parlex USA LLC 100R10-127B	127 mm	5 in	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	10	0.039 in	1 mm	FFC, FPC
Parlex USA LLC 100R10-152B			0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	10	0.039 in	1 mm	FFC, FPC	5.984 in	152 mm
Parlex USA LLC 100R10-203B			0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	10	0.039 in	1 mm	FFC, FPC	7.992 in	203 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position FFC, FPC Cable 0.039" (1.00mm) 7.992" (203.00mm)
