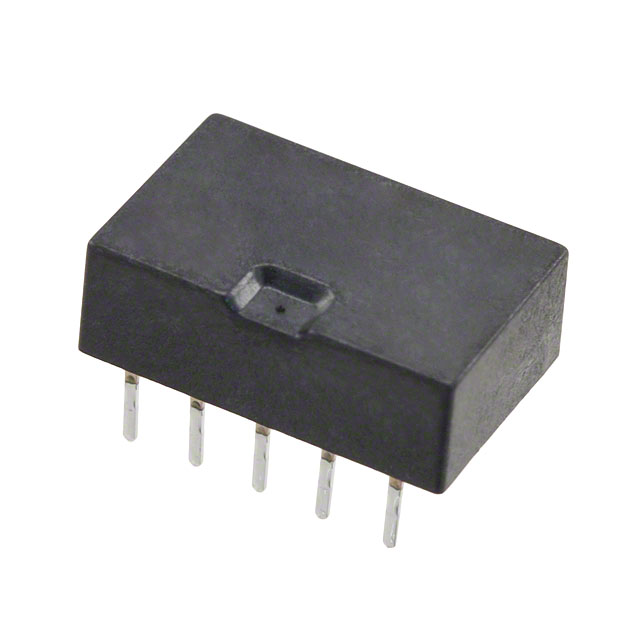

D3042

Active

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 4.5V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	D3042

Coil Current	22.2 mA
Coil Resistance	203 Ohms
Coil Type	Latching, Single Coil
Coil Voltage	4.5 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Palladium (Pd), Gold (Au), Ruthenium (Ru)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Through Hole
Must Operate Voltage	3.38 VDC
Operate Time	20 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	20 ms
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

Part	Switching Voltage	Coil Type	Coil Resistance	Contact Rating (Current)	Mounting Type	Coil Voltage	Must Operate Voltage	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Contact Material	Load - Max Switching	Release Time	Contact Form	Termination Style	Relay Type
TE Connectivity Potter & Brumfield Relays D3042	220 VDC 250 VAC	Latching Single Coil	203 Ohms	2 A	Through Hole	4.5 VDC	3.38 VDC	20 ms	85 °C	-40 °C	22.2 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	440 W 500 VA	20 ms	DPDT (2 Form C)	PC Pin	Telecom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Telecom Relay DPDT (2 Form C) Through Hole
