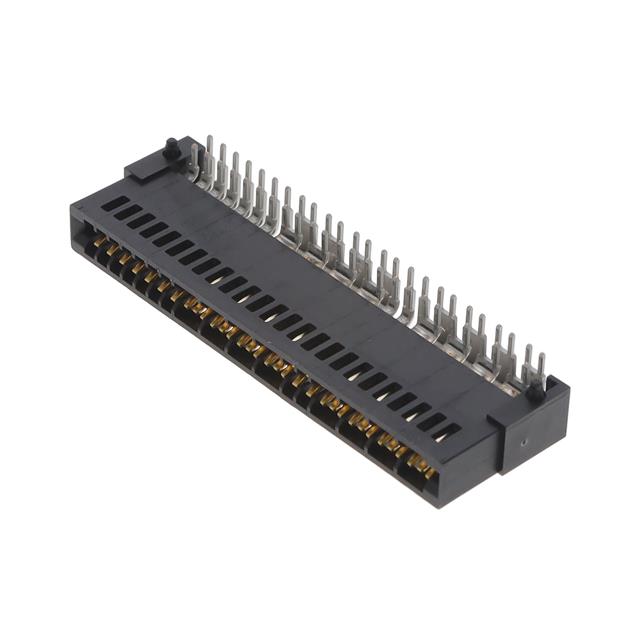

10147875-001LF
ActiveAmphenol ICC (FCI)
EHPCE RAR 8MP4SP8MP14SP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10147875-001LF
ActiveAmphenol ICC (FCI)
EHPCE RAR 8MP4SP8MP14SP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10147875-001LF |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Contact Finish | GXT™, Gold or Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 26.05 | |
| 10 | $ 20.09 | |||
| 25 | $ 18.19 | |||
| 40 | $ 17.31 | |||
| 80 | $ 16.11 | |||
| 230 | $ 14.50 | |||
| 440 | $ 13.63 | |||
Description
General part information
10147875 Series
34 Position Female Connector Non Specified - Dual Edge Gold or Gold, GXT™
