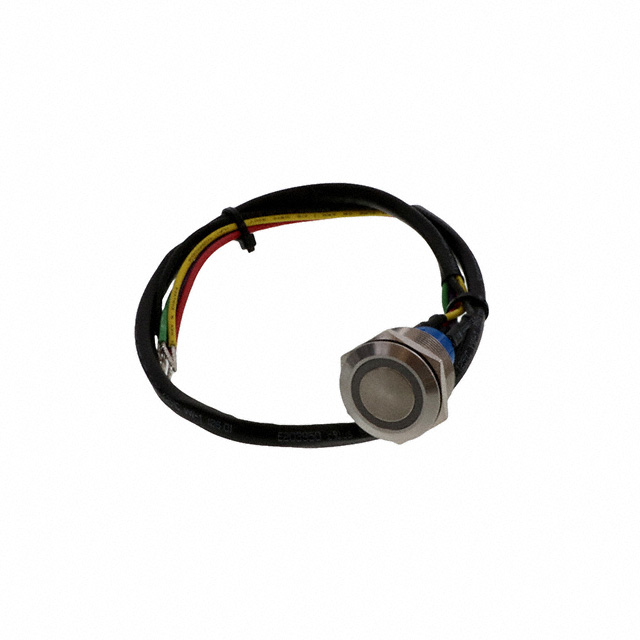

AV2510EA24T5Q04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

AV2510EA24T5Q04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 3A 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AV2510EA24T5Q04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V

AV2510 Series

Part	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Marking	Current Rating (Amps)	Switch Function	Circuit	Actuator Type	Type	Color - Actuator/Cap	Features	Mounting Type	Panel Cutout Dimensions [diameter]	Electrical Life	Ingress Protection	Mechanical Life
TE Connectivity Raychem Cable Protection AV2510M612Q04	250 V	55 °C	-20 C	Solder Lug	Green LED	12 VDC	No Marking	3 A	On-Mom	SPDT	Button Flush Round	Anti-Vandal Illuminated	Silver	Moving LED Ring Power Symbol	Panel Mount Front	25.2 mm	50000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles
TE Connectivity Raychem Cable Protection AV2510E624Q04	250 V	55 °C	-20 C	Solder Lug	Green LED	24 V	No Marking	3 A	On-Mom	SPDT	Button Flush Round	Anti-Vandal Illuminated	Silver		Panel Mount Front	25.2 mm	50000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles
TE Connectivity Raychem Cable Protection AV2510M312Q04	250 V	55 °C	-20 C	Solder Lug	LED Red	12 VDC	No Marking	3 A	On-Mom	SPDT	Button Flush Round	Anti-Vandal Illuminated	Silver	Moving LED Ring Power Symbol	Panel Mount Front	25.2 mm	50000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles
TE Connectivity Raychem Cable Protection AV2510E324Q04	250 V	55 °C	-20 C	Solder Lug	LED Red	24 V	No Marking	3 A	On-Mom	SPDT	Button Flush Round	Anti-Vandal Illuminated	Silver		Panel Mount Front	25.2 mm	50000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles
TE Connectivity Raychem Cable Protection AV2510E112Q04	250 V	55 °C	-20 C	Solder Lug	LED White	12 VDC	No Marking	3 A	On-Mom	SPDT	Button Flush Round	Anti-Vandal Illuminated	Silver		Panel Mount Front	25.2 mm	50000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles
TE Connectivity Raychem Cable Protection AV2510M512Q04	250 V	55 °C	-20 C	Solder Lug	LED Yellow	12 VDC	No Marking	3 A	On-Mom	SPDT	Button Flush Round	Anti-Vandal Illuminated	Silver	Moving LED Ring Power Symbol	Panel Mount Front	25.2 mm	50000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles
TE Connectivity Raychem Cable Protection AV2510MB12T5Q04	250 V	55 °C	-20 C	Wire Leads	Blue/Red LED	12 VDC	No Marking	3 A	On-Mom	SPDT	Button Flush Round	Anti-Vandal Illuminated	Silver	Moving LED Ring Power Symbol	Panel Mount Front	25.2 mm	50000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles
TE Connectivity Raychem Cable Protection AV2510EA24T5Q04	250 V	55 °C	-20 C	Wire Leads	Green/Red LED	24 V	No Marking	3 A	On-Mom	SPDT	Button Flush Round	Anti-Vandal Illuminated	Silver		Panel Mount Front	25.2 mm	50000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 25.33

Description

General part information

AV2510 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
