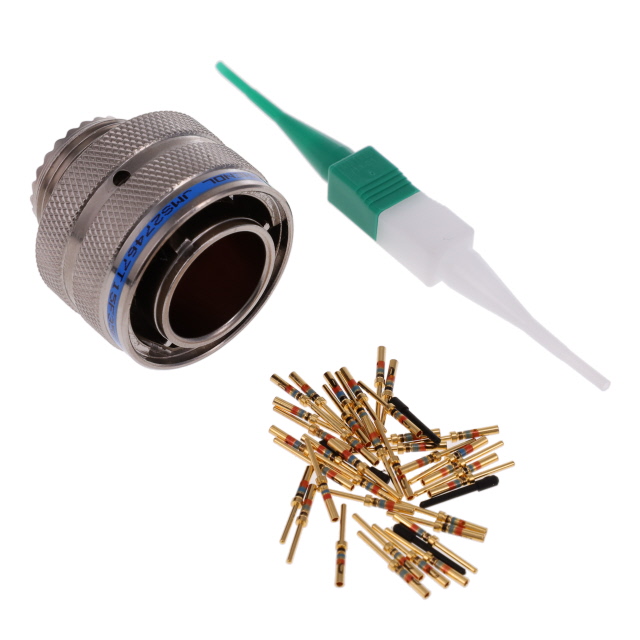

MS27467T15F35P

Active

Amphenol Aerospace Operations

CONN PLUG MALE 37POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG MALE 37POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467T15F35P

Applications	Military, Aviation
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	15
Shielding	Shielded
Termination	Crimp

Part	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Qualification	Contact Finish - Mating	Termination	Shell Material	Shell Finish	Mounting Type	Fastening Type	Primary Material	Shielding	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Grade	Orientation	Color	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Applications	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Aerospace Operations MS27467T15F37JC	Copper Alloy	37	-65 ░C	200 °C	Environment Resistant	MIL-DTL-38999 Series I	Gold	Crimp	Aluminum Alloy	Electroless Nickel	Free Hanging (In-Line)	Bayonet Lock	Metal	Shielded	37	15	Military	C	Silver	Coupling Nut	2.54 çm	100 çin	Female Sockets Plug	Aviation Marine Military
Amphenol Aerospace Operations MS27467T15F35P	Copper Alloy	37	-65 ░C	200 °C	Environment Resistant	MIL-DTL-38999 Series I	Gold	Crimp	Aluminum	Electroless Nickel	Free Hanging (In-Line)	Bayonet Lock	Metal	Shielded			Military	N	Silver	Coupling Nut	1.27 µm	50 µin	Male Pins Plug	Aviation Military	15	35

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position Circular Connector Plug, Male Pins Crimp
