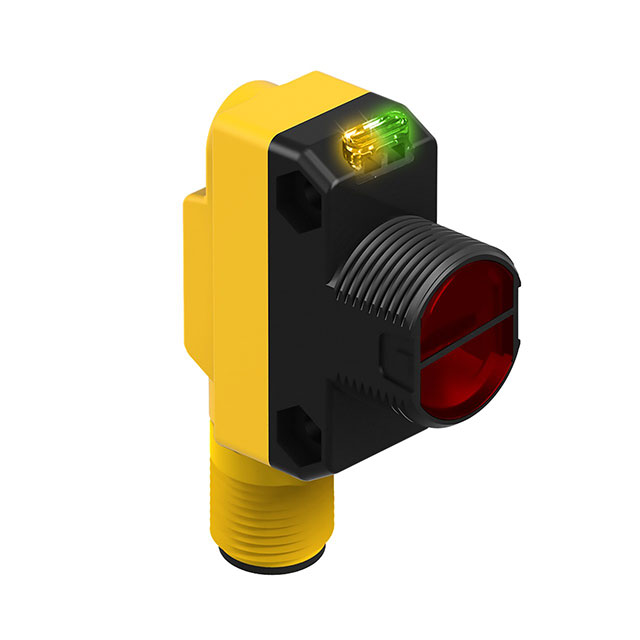

QS18EP6DQ8

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, QS18E SERIES, 800 MM, DIFFUSE, PNP, 10 V TO 30 V, QUICK DISCONNECT

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, QS18E SERIES, 800 MM, DIFFUSE, PNP, 10 V TO 30 V, QUICK DISCONNECT

Technical Specifications

Parameters and characteristics for this part

Part	Output Configuration	Ingress Protection	Sensing Distance	Sensing Distance	Connection Method	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Light Source	Light Source	Adjustment Type	Cable Length	Cable Length
BANNER ENGINEERING QS18EP6LPQ	PNP - Dark-ON/Light-ON - Selectable	NEMA 6P IEC IP67	11.48 ft	350 cm	Connector	-20 C	70 °C	Polarized Retroreflective	30 VDC	10 VDC	600 µs	Red	630 nm	Adjustable
BANNER ENGINEERING QS18EP6W	PNP - Dark-ON/Light-ON - Selectable	IP67	11.811 in	300 mm	Cable	-20 C	70 °C	Diffuse	30 VDC	10 VDC	600 µs	Infrared	940 nm	Adjustable	78.74 in	2 m
BANNER ENGINEERING QS18EP6XLPCQ5	PNP - Dark-ON/Light-ON	NEMA 6P IEC IP67	118.11 in	3000 mm	Connector	-40 °C	70 °C	Polarized Retroreflective	30 VDC	10 VDC	400 µs	LED		Adjustable
BANNER ENGINEERING QS18EP6DQ8	PNP - Dark-ON/Light-ON	NEMA 6P IEC IP67	31.496 "	800 mm	Connector	-20 C	70 °C	Diffuse	30 VDC	10 VDC	600 µs	Infrared LED		Adjustable
BANNER ENGINEERING QS18EP6XLPCQ8	PNP - Dark-ON/Light-ON	NEMA 6P IEC IP67	118.11 in	3000 mm	Connector	-40 °C	70 °C	Polarized Retroreflective	30 VDC	10 VDC	400 µs	LED		Adjustable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diffuse Optical Sensor 31.496" (800mm) PNP - Dark-ON/Light-ON
