Description

General part information

SPMWH3326 Series

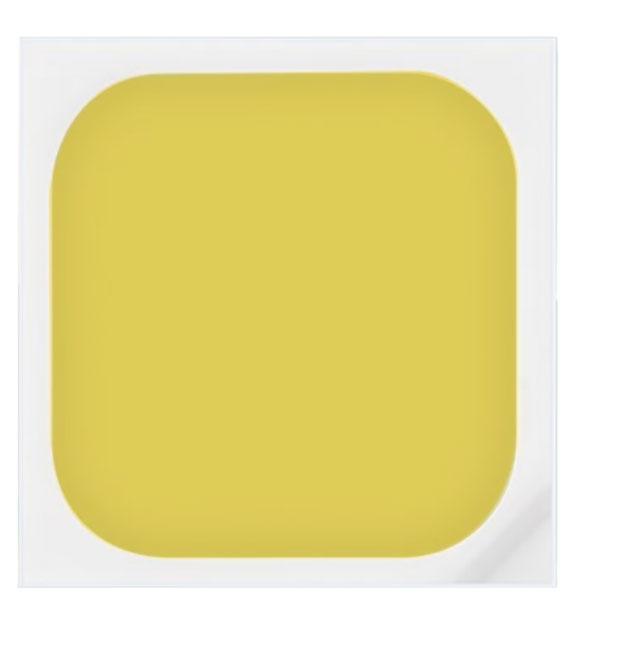

LED Lighting LM301D White, Warm 2700K 3-Step MacAdam Ellipse 2.72V 65mA 120° 1212 (3030 Metric)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPMWH3326MS7WAW3SD	SPMWH3326 Series

CCT (K)	2700 K	2700 - 6500 K
Color	White, Warm	White, Warm, Neutral, Cool
CRI (Color Rendering Index)	90	70 - 90
Current - Max [Max]	400 mA	200 - 400 mA
Current - Test	65 mA	65 - 150 mA
Flux @ 25°C, Current - Test	28 lm	2 - 142 lm
Flux @ 25°C, Current - Test	-	29 - 137 lm
Flux @ 25°C, Current - Test	-	26 - 127 lm
Flux @ 25°C, Current - Test	-	29 - 138 lm
Flux @ 25°C, Current - Test	-	26 - 128 lm
Flux @ 25°C, Current - Test	-	24 lm
Flux @ 25°C, Current - Test	-	27 lm
Height - Seated (Max) [Max] [z]	0.03 in	0.024 - 0.03 in
Height - Seated (Max) [Max] [z]	0.75 mm	0.6 - 0.75 mm
Lumens/Watt @ Current - Test	158 lm/W	120 - 209 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3030	3030
Supplier Device Package	-	1212
Thermal Resistance of Package [custom]	12 °C/W	12 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2.72 V	2.72 - 6.3 V

SPMWH3326 Series

LED LM301Z+ WARM WHT 2700K 3030

...

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Thermal Resistance of Package [custom]	Package / Case	Package / Case	Mounting Type	Color	Supplier Device Package	Current - Test	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	CCT (K)	Lumens/Watt @ Current - Test	Viewing Angle	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Supplier Device Package
Samsung Semiconductor, Inc. SPMWH3326MP7WAW3S0	0.03 in	0.75 mm	2.75 V	400 mA	12 °C/W	1212	3030 Metric	Surface Mount	Warm, White	3030	65 mA	90	0.118 in	3 mm	3 mm	0.118 in	2700 K	157 lm/W	120 °	28 lm
Samsung Semiconductor, Inc. SPMWH3326MS7WAW3SD	0.03 in	0.75 mm	2.72 V	400 mA	12 °C/W	1212	3030 Metric	Surface Mount	Warm, White	3030	65 mA	90	0.118 in	3 mm	3 mm	0.118 in	2700 K	158 lm/W	120 °	28 lm
Samsung Semiconductor, Inc. SPMWH3326MD3WAWYSA	0.024 in	0.6 mm	2.75 V	400 mA	12 °C/W	1212	3030 Metric	Surface Mount	Warm, White	3030	65 mA	70	0.118 in	3 mm	3 mm	0.118 in		179 lm/W	120 °	32 lm	33 lm	30 lm
Samsung Semiconductor, Inc. SPMWH3326MP7WATYS0	0.03 in	0.75 mm	2.75 V	400 mA	12 °C/W	1212	3030 Metric	Surface Mount	Neutral, White	3030	65 mA	90	0.118 in	3 mm	3 mm	0.118 in	4000 K	168 lm/W	120 °		32 lm	28 lm
Samsung Semiconductor, Inc. SPMWH3326MS5WAR3SD	0.03 in	0.75 mm	2.72 V	400 mA	12 °C/W	1212	3030 Metric	Surface Mount	Cool, White		65 mA	80	0.118 in	3 mm	3 mm	0.118 in		209 lm/W	120 °	37 lm			1212
Samsung Semiconductor, Inc. SPMWH3326MD3WAU3SA	0.024 in	0.6 mm	2.75 V	400 mA	12 °C/W	1212	3030 Metric	Surface Mount	Warm, White	3030	65 mA	70	0.118 in	3 mm	3 mm	0.118 in	3500 K	179 lm/W	120 °	32 lm	34 lm	31 lm
Samsung Semiconductor, Inc. SPMWH3326MP3WARYS0	0.03 in	0.75 mm	2.75 V	400 mA	12 °C/W	1212	3030 Metric	Surface Mount	Cool, White	3030	65 mA	70	0.118 in	3 mm	3 mm	0.118 in	5000 K	201 lm/W	120 °	38		34 lm
Samsung Semiconductor, Inc. SPMWH3326MP7WAP0S0	0.03 in	0.75 mm	2.75 V	400 mA	12 °C/W	1212	3030 Metric	Surface Mount	Cool, White	3030	65 mA	90	0.118 in	3 mm	3 mm	0.118 in	6500 K	168 lm/W	120 °		32 lm	28 lm
Samsung Semiconductor, Inc. SPMWH3326MD7WAP3SA	0.024 in	0.6 mm	2.75 V	400 mA	12 °C/W	1212	3030 Metric	Surface Mount	Cool, White	3030	65 mA	90	0.118 in	3 mm	3 mm	0.118 in	6500 K	157 lm/W	120 °	28 lm	29 lm	26 lm
Samsung Semiconductor, Inc. SPMWH3326FD3GBT0SA	0.024 in	0.6 mm	6.2 V	200 mA	12 °C/W	1212	3030 Metric	Surface Mount	Neutral, White	3030	150 mA	70	0.118 in	3 mm	3 mm	0.118 in	4000 K	153 lm/W	120 °	142 lm
