912S-2-5-02000

Active

CnC Tech, LLC

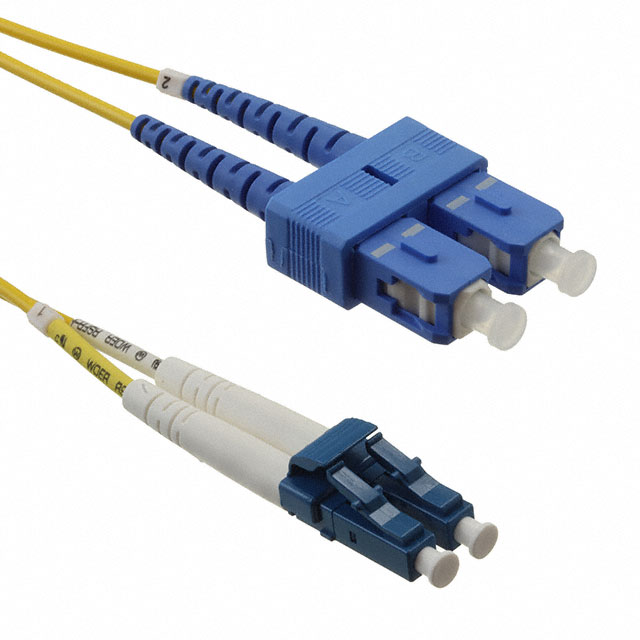

FIBER OPTIC CBL LC-SC DUPLEX 20M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

912S-2-5-02000

Active

CnC Tech, LLC

FIBER OPTIC CBL LC-SC DUPLEX 20M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 24.66

Description

General part information

912S-2-5 Series

Cable Fiber Optic LC Duplex To SC Duplex 9/125 65.6' (20.0m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	912S-2-5-02000	912S-2-5 Series

1st Connector	LC Duplex	LC Duplex
2nd Connector	SC Duplex	SC Duplex
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Color - Cable	Yellow	Yellow
Color - Connectors	Blue	Blue
Features	-	Plenum
Fiber Type	9/125	9/125
Insertion Loss	0.3 dB	0.3 dB
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Length - Overall	-	5 m
Length - Overall	-	16.4 ft
Length - Overall [x]	65.6 ft	3.3 - 82 ft
Length - Overall [x]	20 m	1 - 25 m
Ratings	-	OFNP
Return Loss	50 dB	50 dB
Type	Singlemode, Duplex	Singlemode, Duplex

912S-2-5 Series

FIBER OPTIC CBL LC-SC DUPLEX 20M

Part	Cable Diameter [diameter]	Cable Diameter [diameter]	Type	Length - Overall [x]	Length - Overall [x]	2nd Connector	Jacket (Insulation) Material	Return Loss	Insertion Loss	Color - Connectors	Fiber Type	1st Connector	Color - Cable	Length - Overall	Length - Overall	Features	Ratings
CnC Tech, LLC 912S-2-5-02000	2 mm	0.08 in	Duplex, Singlemode	65.6 ft	20 m	SC Duplex	Poly-Vinyl Chloride (PVC)	50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow
CnC Tech, LLC 912S-2-5-00100	2 mm	0.08 in	Duplex, Singlemode	3.3 ft	1 m	SC Duplex	Poly-Vinyl Chloride (PVC)	50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow
CnC Tech, LLC 912S-2-5-02500	2 mm	0.08 in	Duplex, Singlemode	82 ft	25 m	SC Duplex	Poly-Vinyl Chloride (PVC)	50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow
CnC Tech, LLC 912S-2-5-00500	2 mm	0.08 in	Duplex, Singlemode			SC Duplex	Poly-Vinyl Chloride (PVC)	50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow	5 m	16.4 ft
CnC Tech, LLC 912S-2-5-00100-PL	2 mm	0.08 in	Duplex, Singlemode	3.3 ft	1 m	SC Duplex		50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow			Plenum	OFNP
CnC Tech, LLC 912S-2-5-02000-PL	2 mm	0.08 in	Duplex, Singlemode	65.6 ft	20 m	SC Duplex		50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow			Plenum	OFNP
CnC Tech, LLC 912S-2-5-01000-PL	2 mm	0.08 in	Duplex, Singlemode	32.8 ft	10 m	SC Duplex		50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow			Plenum	OFNP
CnC Tech, LLC 912S-2-5-00200	2 mm	0.08 in	Duplex, Singlemode	6.6 ft	2 m	SC Duplex	Poly-Vinyl Chloride (PVC)	50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow
CnC Tech, LLC 912S-2-5-01500	2 mm	0.08 in	Duplex, Singlemode	49.2 '	15 m	SC Duplex	Poly-Vinyl Chloride (PVC)	50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow
CnC Tech, LLC 912S-2-5-02500-PL	2 mm	0.08 in	Duplex, Singlemode	82 ft	25 m	SC Duplex		50 dB	0.3 dB	Blue	9/125	LC Duplex	Yellow			Plenum	OFNP
