ACDBUC0230-HF

Active

Comchip Technology

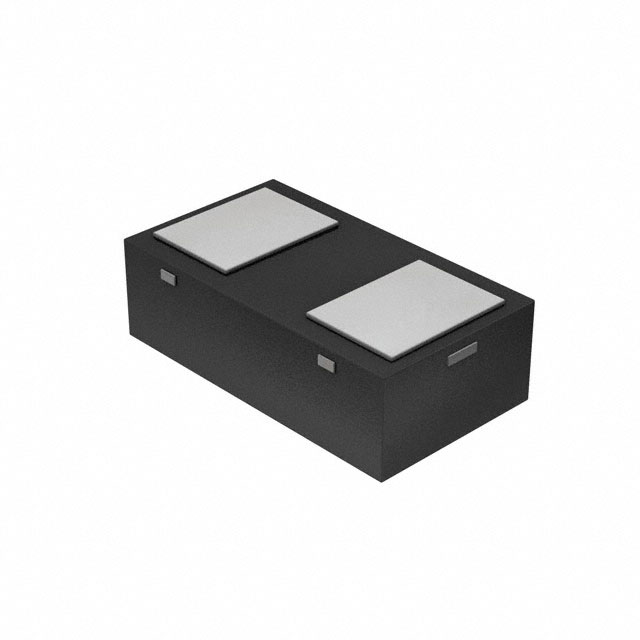

DIODE SCHOTTKY 30V 200MA 0603C

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 30V 200MA 0603C

Technical Specifications

Parameters and characteristics for this part

Specification	ACDBUC0230-HF

Capacitance @ Vr, F	9 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	30 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	2-SMD, No Lead
Qualification	AEC-Q101
Speed	Any Speed
Speed	200 mA
Supplier Device Package	0603C/SOD-523F
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	500 mV

DIODE SCHOTTKY 30V 200MA 0603C

Part	Technology	Qualification	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Grade	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Mounting Type	Supplier Device Package	Package / Case
Comchip Technology ACDBUC0230-HF	Schottky	AEC-Q101	9 pF	30 µA	125 °C	-40 °C	30 V	Any Speed	200 mA	Automotive	500 mV	200 mA	Surface Mount	0603C/SOD-523F	2-SMD, No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 200mA Surface Mount 0603C/SOD-523F
