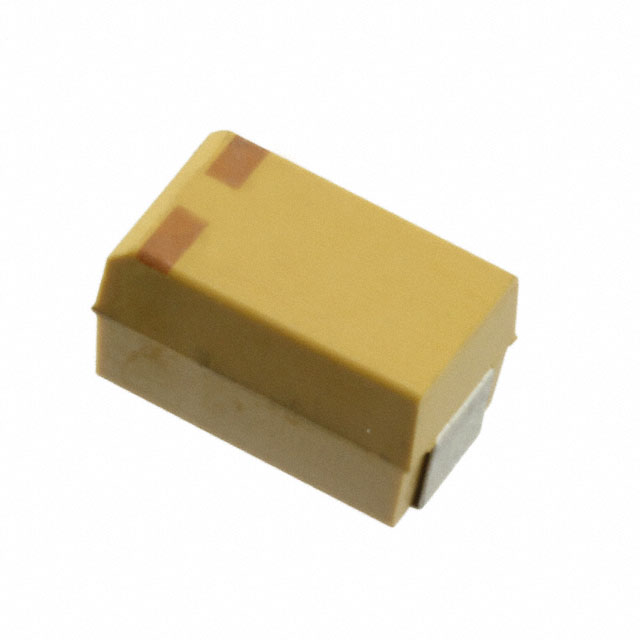

T489X477M006ATE250
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 6.3V, 20% +TOL, 20% -TOL, 470UF, SURFACE MOUNT, 2917, CHIP
Deep-Dive with AI
Search across all available documentation for this part.
T489X477M006ATE250
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 6.3V, 20% +TOL, 20% -TOL, 470UF, SURFACE MOUNT, 2917, CHIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T489X477M006ATE250 |
|---|---|
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 250 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 0.169 " |
| Height - Seated (Max) [Max] | 4.3 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | X |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.29 | |
| 10 | $ 2.52 | |||
| 50 | $ 2.28 | |||
| 100 | $ 1.96 | |||
| Digi-Reel® | 1 | $ 3.29 | ||
| 10 | $ 2.52 | |||
| 50 | $ 2.28 | |||
| 100 | $ 1.96 | |||
| Tape & Reel (TR) | 500 | $ 1.54 | ||
| 1000 | $ 1.43 | |||
| 2500 | $ 1.38 | |||
| 5000 | $ 1.35 | |||
Description
General part information
T489X Series
470 µF Molded Tantalum Capacitors 6.3 V 2917 (7343 Metric) 250mOhm
