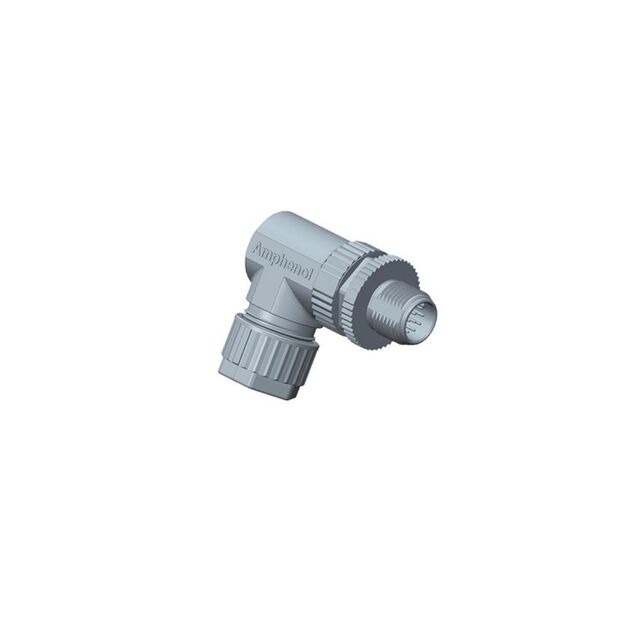

MSBP-05BMMA-SR7001

Active

Amphenol LTW

M SERIES, M12, 4A, 05 PINS, FIEL

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 4A, 05 PINS, FIEL

Technical Specifications

Parameters and characteristics for this part

Specification	MSBP-05BMMA-SR7001

Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Screw
Voltage Rating	60 VDC

Part	Shell Finish	Voltage Rating	Current Rating (Amps)	Connector Type	Mounting Type	Orientation	Shell Material	Contact Material	Shielding	Features	Contact Finish - Mating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Color	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Insert Material	Backshell Material, Plating	Primary Material	Termination
Amphenol LTW MSBP-05BMMA-SL8001	Nickel	60 VAC	4 A	Male Pins Receptacle	Free Hanging (In-Line)	B	Zinc Alloy	Copper Alloy	Unshielded	Backshell Coupling Nut	Gold	M12-5	-40 °C	105 ░C	Silver	IP68 - Dust Tight Waterproof	4.5 mm 6.5 mm	0.177 in 0.256 in
Amphenol LTW MSBP-05BMMA-SR7001		60 VDC	4 A	Male Pins Plug	Free Hanging (In-Line) Right Angle	B		Copper Alloy	Unshielded	Backshell Coupling Nut	Gold	M12-5	-40 °C	105 ░C	Black	IP67 - Dust Tight Waterproof	4.5 mm 6.5 mm	0.177 in 0.256 in	Thermoplastic	Thermoplastic	Plastic	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Screw
