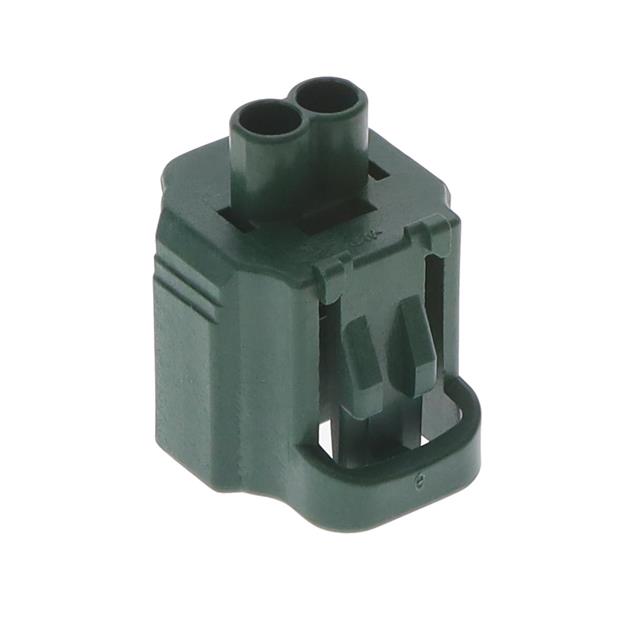

Specification	2822362-4

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch	0.197 in

2822362 Series

Part	Note	Number of Positions	Contact Termination	Insulation Material	Number of Rows	Mounting Type	Features	Color	Fastening Type	Pitch	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type
TE Connectivity AMP Connectors 2822362-4	Contacts Not Included	2	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Sealed	Green	Latch Lock	0.197 in	Plug	-30 °C	105 °C	Female Socket
TE Connectivity AMP Connectors 2822362-3	Contacts Not Included	2	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Sealed	Gray	Latch Lock	0.197 in	Plug	-30 °C	105 °C	Female Socket
TE Connectivity AMP Connectors 2822362-1
